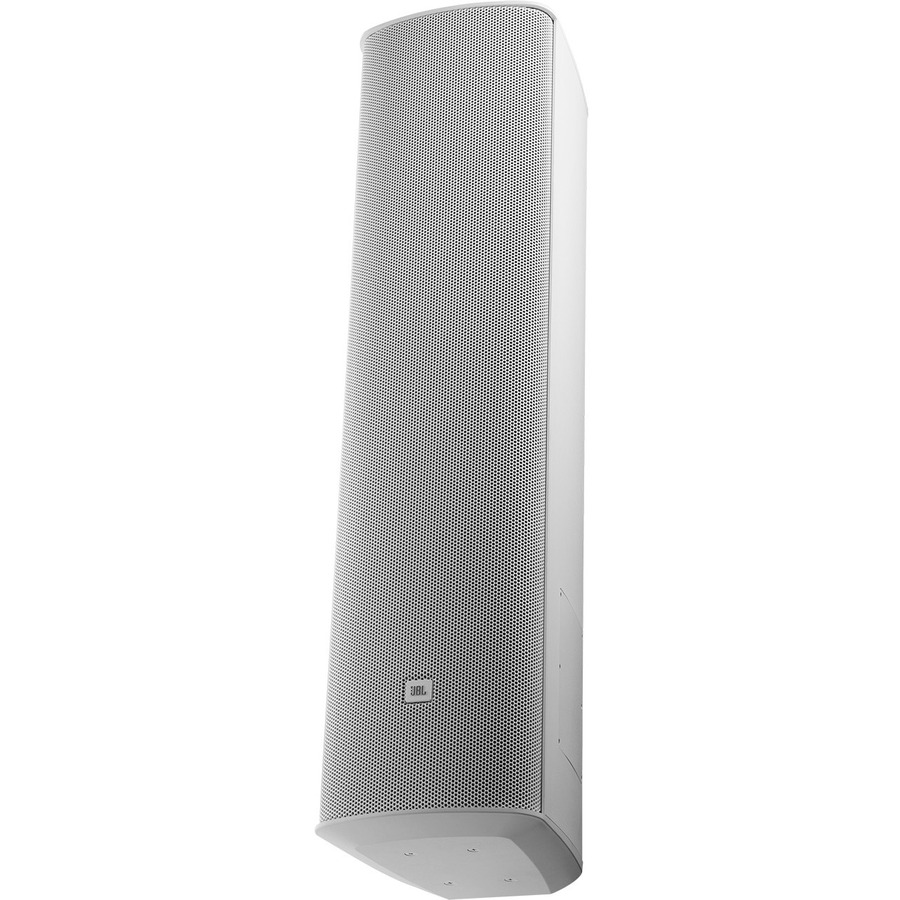

JBL Professional Line Array CBT 1000E Outdoor Wall Mountable Speaker - 1500 W RMS

Manufacturer: Harman International Industries, Inc
Mfr. Part: CBT 1000E

6000 W (PMPO) Woofer Tweeter Midrange - 38 Hz to 650 Hz - 8 Ohm

JBL Professional Line Array CBT 1000E Outdoor Wall Mountable Speaker - 1500 W RMS

About This Product

Overview

The CBT 1000E cabinet contains six low frequency drivers and a crossover network purposely designed for use in the CBT 1000 + 1000E system, in a tough fiberglassreinforced ABS enclosure. The 1500W power handling and high sensitivity delivers powerful low frequency output.

The drivers have neodymium magnet motors with 50 mm (2 in) diameter voice coils. The magnet system provides maximum flux in a compact package. The magnetic structure is magnetically shielded and the copper pole tips reduce flux modulation and minimize distortion. The 16 mm (0.62 mm) long coil provides higher linear drive and high power handling in a compact driver. The drivers feature damped blended surrounds and coated sealed paper cones found in high performance large format drivers. Drivers feature coated diaphragm materials to provide moisture, UV and salt resistance for outdoor capability. The thick heavy-duty aluminum grille allows for rust-free installation outdoors.
  • Components: Six (6) 165 mm (6.5 in) high-excursion LF drivers
  • 1500 Watt RMS power handling
  • Built-in purpose-designed crossover network for combining with CBT 1000
  • Coupler plate included
  • Doubles power handling and extends pattern control

Quick Specifications

Product Line
Line Array
Product Series
CBT
Product Model
CBT 1000E
Product Type
Speaker
RMS Output Power
1500 W
PMPO Output Power
6000 W
Minimum Frequency Response
38 Hz
Maximum Frequency Response
650 Hz
