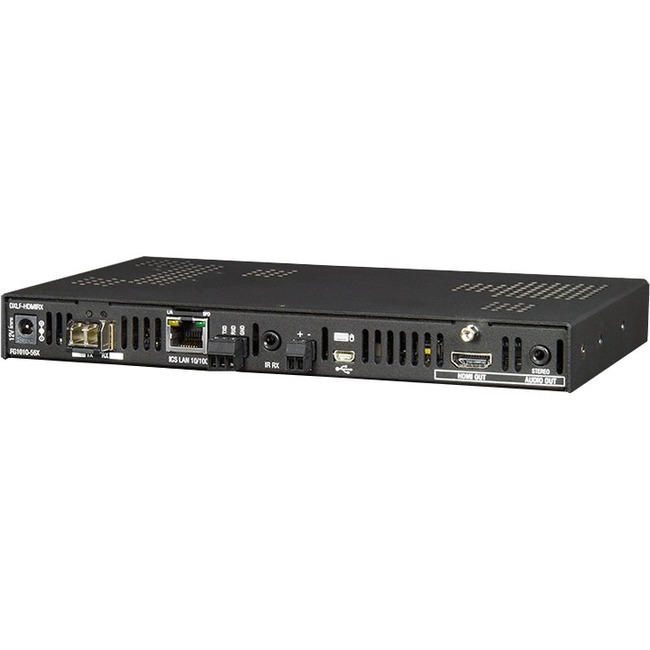

AMX DXLinkTM HDMI Multimode Fiber Receiver, Simplex With Fiber Extension
Manufacturer: Harman International Industries, Inc
Mfr. Part: FG1010-563FX
1 Output Device - 984.25 ft Range - 1 x Network (RJ-45) - 1 x USB - 1 x HDMI Out - 480i, 576i, 720p, 1080i, 1080p - WUXGA - 1920 x 1200 - Optical Fiber - Surface-mountable, Pole-mountable, Rail-mountable
About This Product
Overview
The DXLink HDMI Fiber Receiver features built-in SmartScale® Technology to deliver HDMI with HDCP that is perfectly scaled for each connected display automatically, eliminating the integration challenges that can occur when sources and displays have different optimal resolutions. It accepts audio and video over multimode fiber from up to 300 meters. Mount the low-profile DXLink Fiber Receiver behind a display or above a ceiling mounted projector.
COMMON APPLICATIONS
The ideal solution for any destination display or projector designed into an Enova DGX integrated system that requires the distance capabilities and inherent security of fiber - or both; including campus-wide distribution of sources that are shared between classrooms, secure military applications, casinos, arenas and museums. Directly connect LCDs, plasmas and projectors using the HDMI output connection while delivering room audio via the stereo audio output.
COMMON APPLICATIONS
The ideal solution for any destination display or projector designed into an Enova DGX integrated system that requires the distance capabilities and inherent security of fiber - or both; including campus-wide distribution of sources that are shared between classrooms, secure military applications, casinos, arenas and museums. Directly connect LCDs, plasmas and projectors using the HDMI output connection while delivering room audio via the stereo audio output.
- HDCP Compliance Over Fiber - Transmit HDCP compliant video including HDMI up to 300 m
- Industry Leading Data Rate - DXLink is leading the way with an optical transport rate of 10 Gbps
- SmartScale® Technology - Automatically responds to the display's declared EDID information and scales the video to the best resolution and video parameters for that display without manual setup; this prevents inferior video quality when sources are forced to lower resolutions to support the least capable display in the system
- Secure and Isolated - Fiber inherently provides extra security and electrical isolation making it the transport method of choice for many mission-critical secure environments; further, by removing the fiber return path simplex models provide an added layer of security
- Field Serviceable Fiber Modules - Easily remove and replace SFP modules in the field
Quick Specifications
- Product Line
- DXLink
- Product Model
- DXF-RX-MMS
- Product Type
- Video Extender Receiver
- Connectivity Technology
- Wired
- Number of Output Devices Supported
- 1
- Maximum Operating Distance
- 984.25 ft
- Graphics Modes
- WUXGA
- Supported Video Modes
- 480i 576i 720p 1080i 1080p
