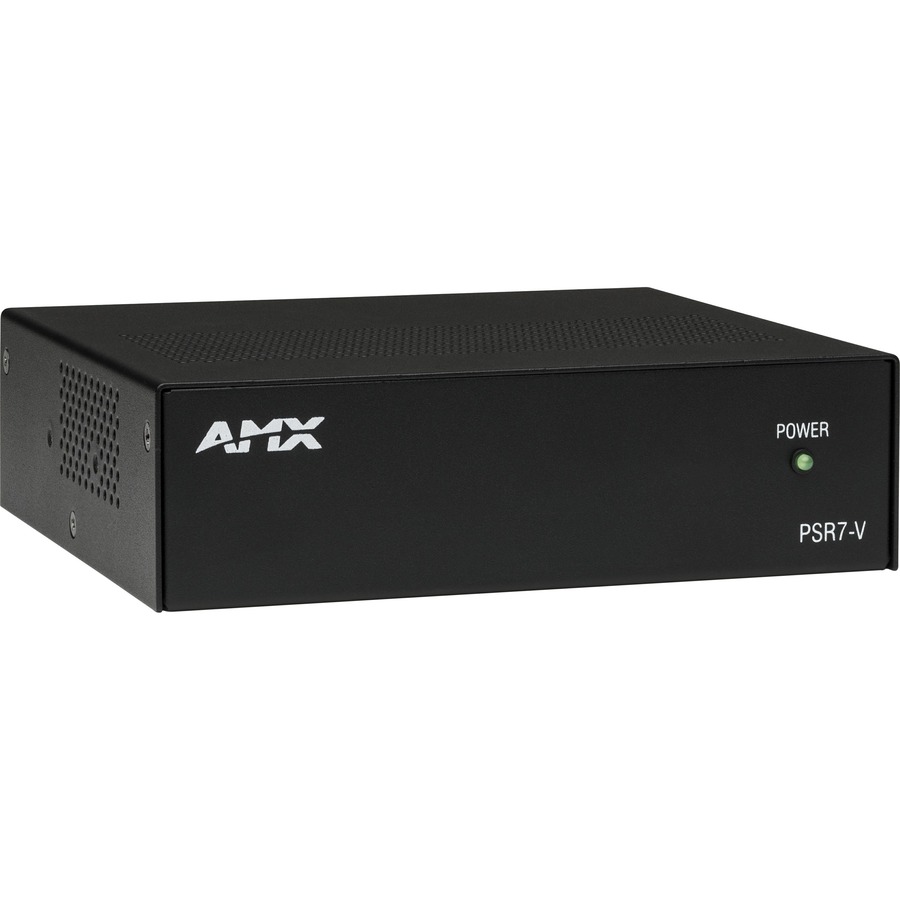

AMX PSR7-V Versatile Mount 5.5 Amp Power Supply
Surface Mount, Rack-mountable - 120 V AC, 230 V AC Input - 12 V DC Output
About This Product
Overview
The PSR7-V power supply provides 5.5 amps of 12VDC power and is an optional power supply for Modero® X Series line of touch panels and NetLinx NX Integrated Central Controllers. It includes three 3.5 mm phoenix connectors with retention screws.
Accessories include a V-style module rack tray and surface mount brackets which allow the PSR7-V power supply to be securely mounted to flat surfaces such as under a table or on a wall. Up to three power supplies can be mounted side-by-side using a 1 RU space.
COMMON APPLICATIONS
Ideal for professional AV installations, the PSR7-V power supply helps to protect valuable components against over-voltage, over-current, short-circuit, transient and thermal damage.
FEATURES
- Protection - Against over-voltage, over-current, short-circuit, transient and thermal; switching regulated and overload protected.
- Power Indicator - Green LED indicates DC on the output in fault tolerant range.
- Connectors - Includes 3 x Mini 2-pin captive wire connector (3.5 mm).
- Input Power Cord - IEC power cord provided as a separate part, dependent on country requirements.
- Supplies power to the electrical load to keep up with the power requirements
- Delivers 12 V DC to ensure that your device is always ready to use
Quick Specifications
- Product Model
- PSR7-V
- Product Type
- Power Supply
- Input Voltage
- 120 V AC 230 V AC
- Output Voltage
- 12 V DC
- Output Current
- 5.50 A
- Form Factor
- Surface Mount Rack-mountable
- Height
- 1.6"
- Width
- 5.7"
