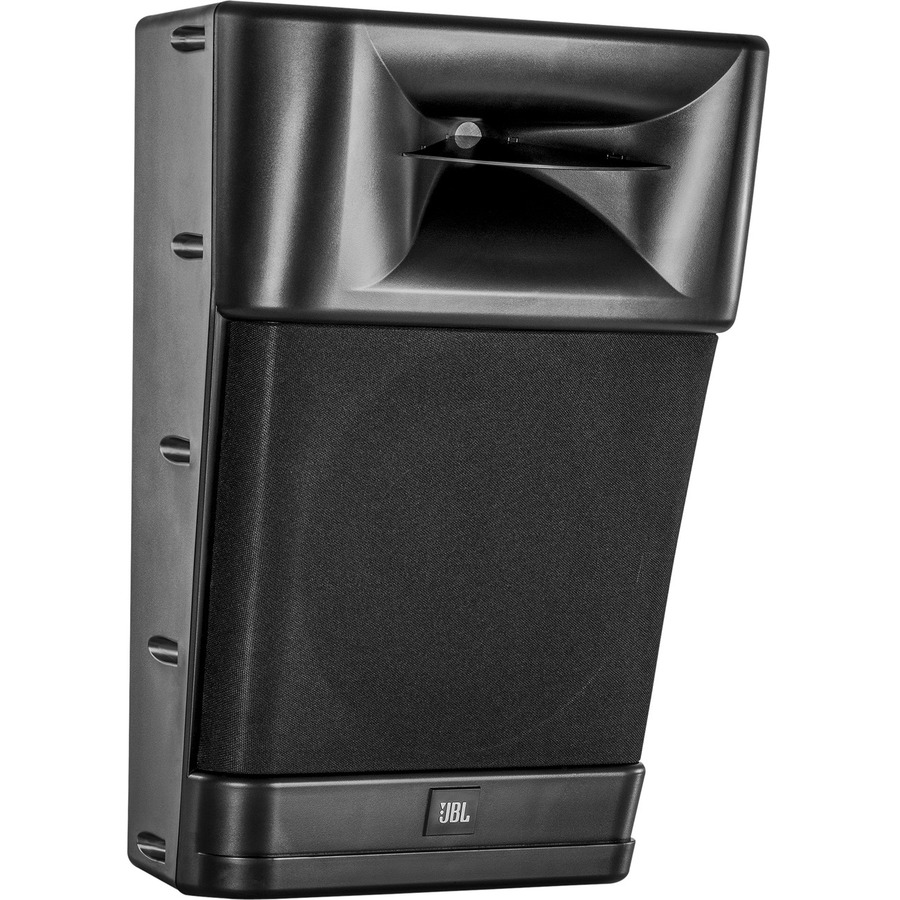

JBL Professional 2-way Wall Mountable Speaker - Black
10" - 1" - 50 Hz to 25 kHz - 8 Ohm
About This Product
Overview
Cinema Surround Loudspeaker 2-Way Passive 1" HF, 10" Woofer (2" VC)
The 9300 Cinema Surround offers high 250 Watt power handling capability, high sensitivity, and extended base response in a groundbreaking design. The two-way 9300 features new transducer technologies, waveguide and horn designs developed specifically to produce studio quality performance with pattern control tailored to modern theatre geometries.
Combining JBL's Image Control Technology and new asymmetric wave-shaping techniques, the 9300 surround features a Wave Shaping Vane, integral to the design, to distribute acoustic energy in proper proportion to the room. This technique provides a wave-front that is sculpted to the room geometry and provides very precise coverage capability.
The 9300 features a high power, long throw 250mm (10 inch) low frequency driver for smooth extended base response. The high frequency section utilizes a 25mm (1 inch) composite diaphragm compression driver with high output capability.
The unique, high tech, molded, black textured enclosure with open high frequency horn and black grill will enhance any décor.
FEATURES
- 250 Watt Power handling capability
- Wave Shaping Vane distributes an acoustic energy wave-front sculpted to the room
- High Frequency Horn features JBL Image Control Technology for precise pattern control
- Three separate horizintal mounting planes at 15 degree angles for specific positioning to improve coverage
- Input terminals on top of cabinet for easy access
- Lightweight, Rigid molded enclosure
- Uniform asymmetric 60 degree vertical coverage and 110 degree horizontal coverage
- Significantly enhance the sound from your devices and drives, get immersed in sound quality
- 8 Ohm impedance extracts maximum power so you will get more output from your speakers
- Hear every detail crisp and clear with a frequency response of 50 Hz-25 kHz
- 10" woofer driver size allows better stereo imaging with maximum sound feasibility
- 1" tweeter driver size provides crispier, well-detailed sound with maximum productivity
- Delivers exceptional sound with 25 kHz maximum frequency response
- 126 dB sensitivity for efficient conversion of power into sound to produce adequate audio output
- Wall mount is cost-effective, reusable, and long-lasting
- 22" height for efficient frequency access and optimal operation
- 16" width to allow maximum usage productivity and added dependability
Quick Specifications
- Product Series
- 9300
- Product Type
- Speaker
- Crossover Type
- 2-way
- Woofer Driver Size
- 10"
- Tweeter Driver Size
- 1"
- Minimum Frequency Response
- 50 Hz
- Maximum Frequency Response
- 25 kHz
- Sensitivity
- 126 dB
