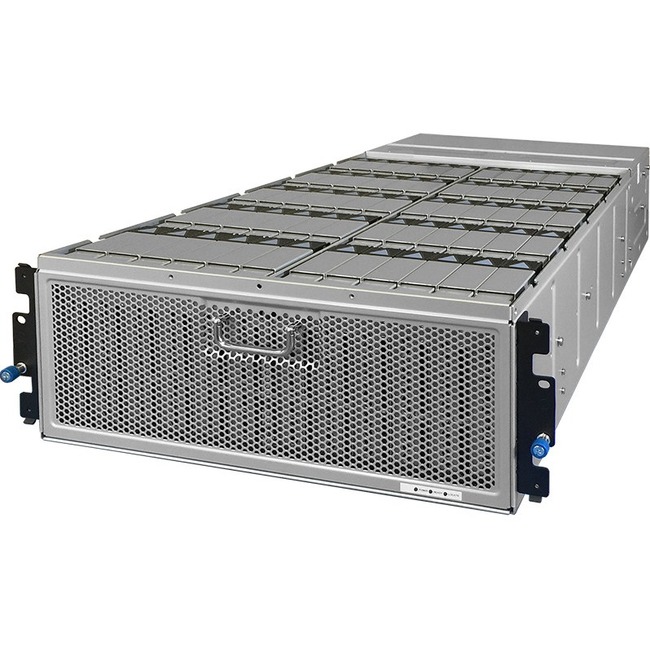

HGST 4U60G2 Drive Enclosure - 12Gb/s SAS Host Interface - 4U Rack-mountable
Manufacturer: Western Digital Corporation
Mfr. Part: 1ES0349
60 x HDD Supported - 12 x SSD Supported - 60 x Total Bay - 60 x 3.5" Bay
About This Product
Overview
When data centers need storage expansion that delivers low power and high capacity with high-availability, they rely on the HGST 4U60G2 Storage Platform. This high density, scalable, and cost-effective design includes up to 60 Ultrastar® 3.5-inch drive modules in a 4U enclosure, supports up to 8 hosts with SAS 12Gb/s performance, and delivers enterprise-class serviceability with hot-swappable components.
This integrated platform is qualified, tested and certified to support a broad range of HGST HDDs. It's available with SAS drives for high-availability (HA) applications, with SATA drives for cost-optimized applications, and can be configured with up to twelve (12) 800GB SSDs to create separate performance tiers within the platform.
- Hybrid capability: can be configured with SSDs to create separate performance tiers within the platform
- Available with SAS drives for HA application or with SATA drives for cost-optimized applications
- Available with 512e or 4Kn sector size (by part number)
- Supports up to 4 storage enclosures for daisy-chaining
- Fully compliant with 12Gb/s SAS 3 interconnect
- Hot-swappable components: two power supplies with integrated fans, drive modules, and IO Modules
- Cable Management Arm (CMA) eliminates tangled cables during servicing of hot-swappable CRUs
- SCSI Enclosure Services (SES-3)
- Microsoft certified for Windows Server 2012, 2012R2
- 5-year limited warranty
Quick Specifications
- Product Model
- 4U60G2
- Product Type
- Drive Enclosure
- Number of Hard Drives Supported
- 60
- Number of Hard Drives Installed
- 60
- Total Hard Drive Capacity Installed
- 600 TB
- Number of Solid State Drive Supported
- 12
- Number of Solid State Drive Installed
- No
- Number of Total Expansion Bays
- 60
