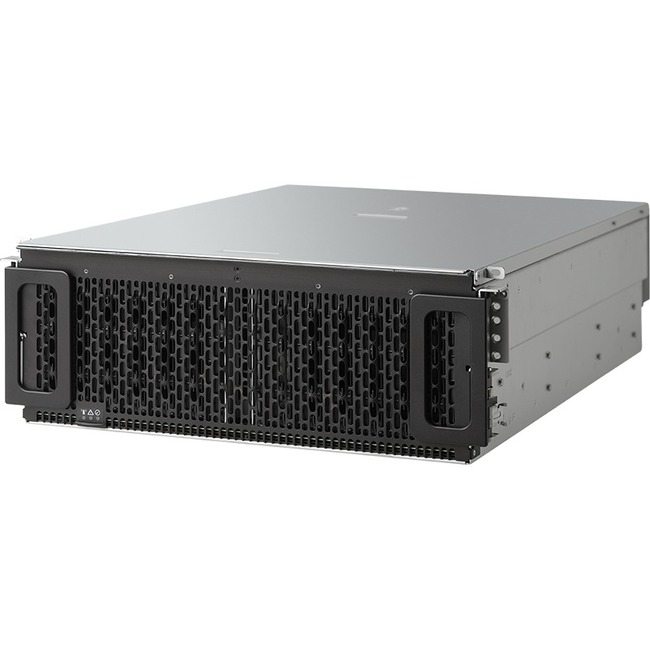

HGST 4U60 Drive Enclosure - 12Gb/s SAS Host Interface - 4U Rack-mountable
Manufacturer: Western Digital Corporation
Mfr. Part: 1ES0374
60 x HDD Supported - 12 x SSD Supported - 60 x Total Bay - 60 x 3.5" Bay
About This Product
Overview
When data centers need storage expansion that delivers low power and high capacity with high-availability, they rely on the HGST 4U60G2 Storage Platform. This high density, scalable, and cost-effective design includes up to 60 Ultrastar® 3.5-inch drive modules in a 4U enclosure, supports up to 8 hosts with SAS 12Gb/s performance, and delivers enterprise-class serviceability with hot-swappable components.
This integrated platform is qualified, tested and certified to support a broad range of HGST HDDs. It's available with SAS drives for high-availability (HA) applications, with SATA drives for cost-optimized applications, and can be configured with up to twelve (12) 800GB SSDs to create separate performance tiers within the platform.
- Up to 60 Ultrastar® He12 HDDs (SAS or SATA)
- Up to 720TB of raw storage in 4U
- Dual-port SAS for high availability or single-port SATA for low cost
- Hybrid support for up to 24 SSDs (SAS or SATA) to create a data acceleration tier
- 4 rack units height, 712mm depth
- Up to 12 x 12Gb/s SAS3 host connections
- Patented IsoVibe technology ensures maximum performance even in heavy workloads
- Enterprise-grade redundant and hot-swappable PSUs, IO Modules and fans
- Improved cooling from innovative, patented ArcticFlow technology
- Rack-mounted top cover for quick and easy service
Quick Specifications
- Product Model
- 4U60
- Product Type
- Drive Enclosure
- Number of Hard Drives Supported
- 60
- Number of Hard Drives Installed
- 24
- Total Hard Drive Capacity Installed
- 192 TB
- Number of Solid State Drive Supported
- 12
- Number of Solid State Drive Installed
- No
- Number of Total Expansion Bays
- 60
