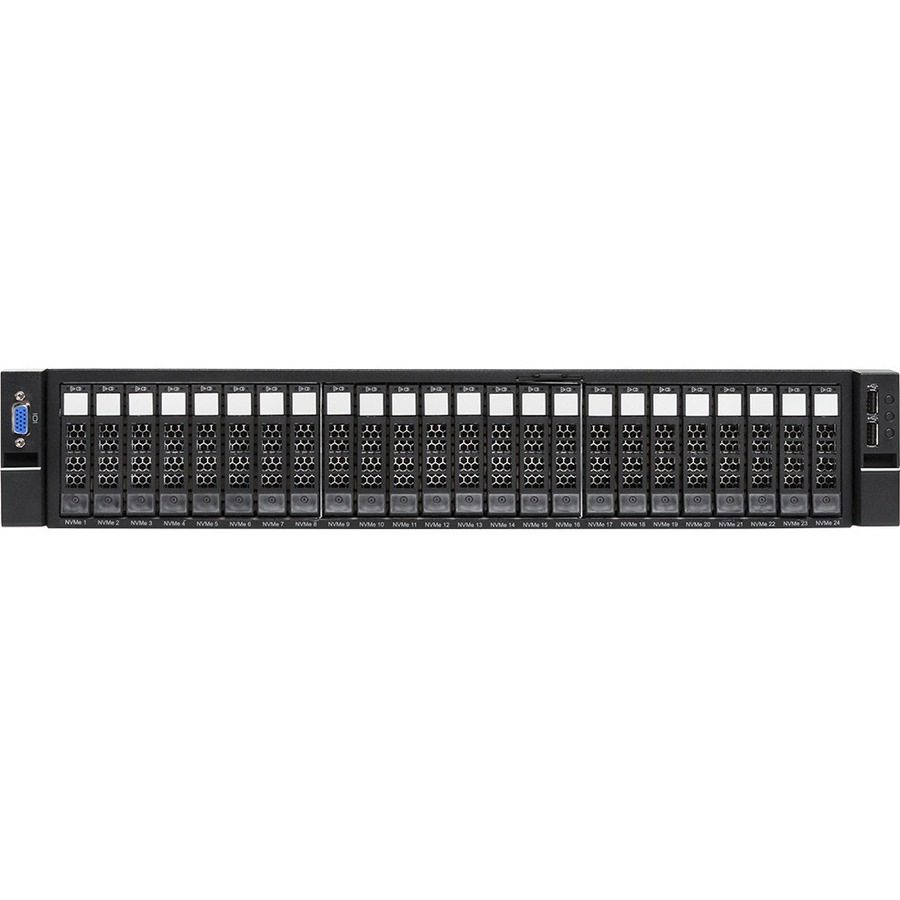

HGST Ultrastar Serv24 SS2U24PUR-1023 NAS Storage System
Manufacturer: Western Digital Corporation
Mfr. Part: 1ES1027
Xeon Gold 6140 Octadeca-core (18 Core) 2.30 GHz - 24 x SSD Supported - 184 TB Supported SSD Capacity - 24 x SSD Installed - 76.80 TB Total Installed SSD Capacity - 2 Boot Drive(s) - 256 GB RAM DDR4 SDRAM - NVMe Controller - 24 x Total Bays - 24 x 2.5" Bay - 3 x Total Slot(s) - 10 Gigabit Ethernet - VGA - 2 USB Port(s) - 2 USB 3.0 Port(s) - Network (RJ-45) - IPMI 2.0 - 2U - Rack-mountable
About This Product
Overview
There is a never-ending need to increase data center performance for storage-intensive applications. The Ultrastar® Serv24 is designed to be a performance-optimized platform for software defined storage (SDS). By integrating CPUs and NVMe™ SSDs in the same unit, our storage server provides a tested and validated building block for deploying the SDS stack on high-performance storage.
Designed for Fast Data
Flash technology has revolutionized the performance of storage systems; NVMe technology extends flash storage to its full potential. Built upon our storage expertise, the Ultrastar Serv24 features the latest Intel® Xeon® CPUs. Chipset, core count and CPU power can be customized, providing the flexibility to meet varying requirements depending on data workload and performance requirements. Whether as a stand-alone file server or part of a scale-out deployment, the Ultrastar Serv24 is built to deliver screaming performance in software-defined storage environments. With low latency and consistently high bandwidth, data is accelerated to the speed of flash.- Up to 184TB in a 2U unit
- Up to 24 NVMe SSDs with a range of capacities and endurance options
- High-performance Intel® "Purley"- based server with a choice of CPUs
- 2 512GB SSD boot drives
- 256GB DDR4 DRAM
- 2-port 10GbE included
- 1-port 1GbE for system management
- 2 PCIe x16 slots available for add-in cards
- Enterprise-grade redundant and hot-swappable PSUs and fan
Quick Specifications
- Product Line
- Ultrastar Serv24
- Product Model
- SS2U24PUR-1023
- Product Type
- NAS Storage System
- Number of Boot Drives
- 2
- Number of Solid State Drive Supported
- 24
- Number of Solid State Drive Installed
- 24
- Total Solid State Drive Capacity Supported
- 184 TB
- Total Solid State Drive Capacity Installed
- 76.80 TB
