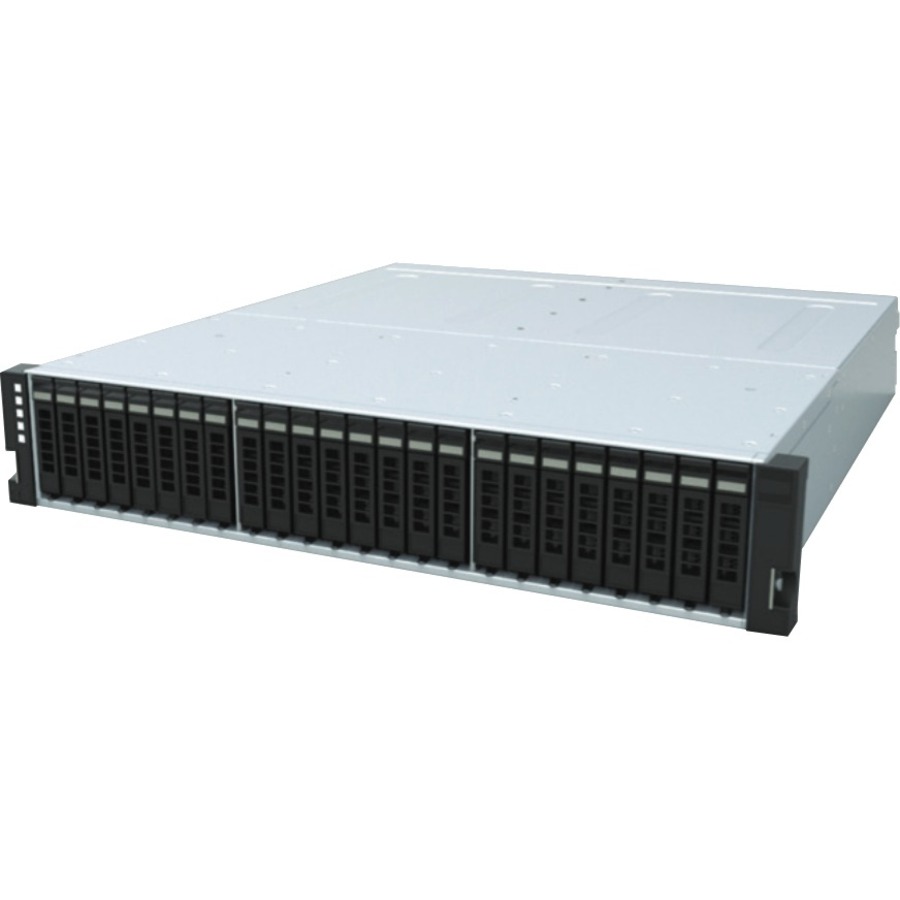

HGST Ultrastar 1ES1616 Drive Enclosure 12Gb/s SAS - 12Gb/s SAS Host Interface - 2U Rack-mountable
Manufacturer: Western Digital Corporation
Mfr. Part: 1ES1616
Hot Swappable Bays - 24 x SSD Supported - 184.32 TB Total SSD Capacity Supported - 24 x Total Bay - 24 x 2.5" Bay
About This Product
Overview
Flash Storage Platform for Software-Defined Storage
The Ultrastar 2U24 Flash Storage Platform is a key element of next generation softwaredefined storage (SDS) systems. This powerful system balances performance with capacity, delivering high IOPS, low latency at up to 368TB1 capacity. It also offers flexibility to improve compute-to-capacity ratio by decoupling available storage from CPU resources.
Designed for Enterprise and the Cloud
Ultrastar 2U24 Flash Storage Platform addresses the demanding storage needs of large enterprises and cloud service providers who require dense, shared flash storage. The Platform offers distinct features designed for today's data centers, such as:
The Ultrastar 2U24 Flash Storage Platform is a key element of next generation softwaredefined storage (SDS) systems. This powerful system balances performance with capacity, delivering high IOPS, low latency at up to 368TB1 capacity. It also offers flexibility to improve compute-to-capacity ratio by decoupling available storage from CPU resources.
Designed for Enterprise and the Cloud
Ultrastar 2U24 Flash Storage Platform addresses the demanding storage needs of large enterprises and cloud service providers who require dense, shared flash storage. The Platform offers distinct features designed for today's data centers, such as:
- Enterprise-class high availability: hot swappable components including SSDs, I/O Modules, PSUs (integrated fans)
- Fully upgradeable: upgradeable firmware enables drive technology and capacity updates without impacting applications
- Supports enterprise workloads including database, virtualization and scale-out configurations
- A 2U flash storage platform with up to 24 Ultrastar® 2.5" SAS SSD modules
- Available SSD capacities include 1.6TB, 1.92TB, 3.2TB, 3.84TB, 6.4TB, 7.68TB and 15.36TB
- Start with as little as 12 SSDs and add additional SSDs as needed to meet changing needs
- Up to six 12Gb/s SAS3 connections to host
- Up to 4.7M IOPS, 23 GB/s; <1ms latency
- Easy maintenance of SSD modules. Front accessible and hot swappable.
- 5-year limited warranty
Quick Specifications
- Product Line
- Ultrastar
- Product Model
- 1ES1616
- Product Type
- Drive Enclosure
- Number of Solid State Drive Supported
- 24
- Number of Solid State Drive Installed
- 24
- Total Solid State Drive Capacity Supported
- 184.32 TB
- Total Solid State Drive Capacity Installed
- 184.32 TB
- Number of Total Expansion Bays
- 24
