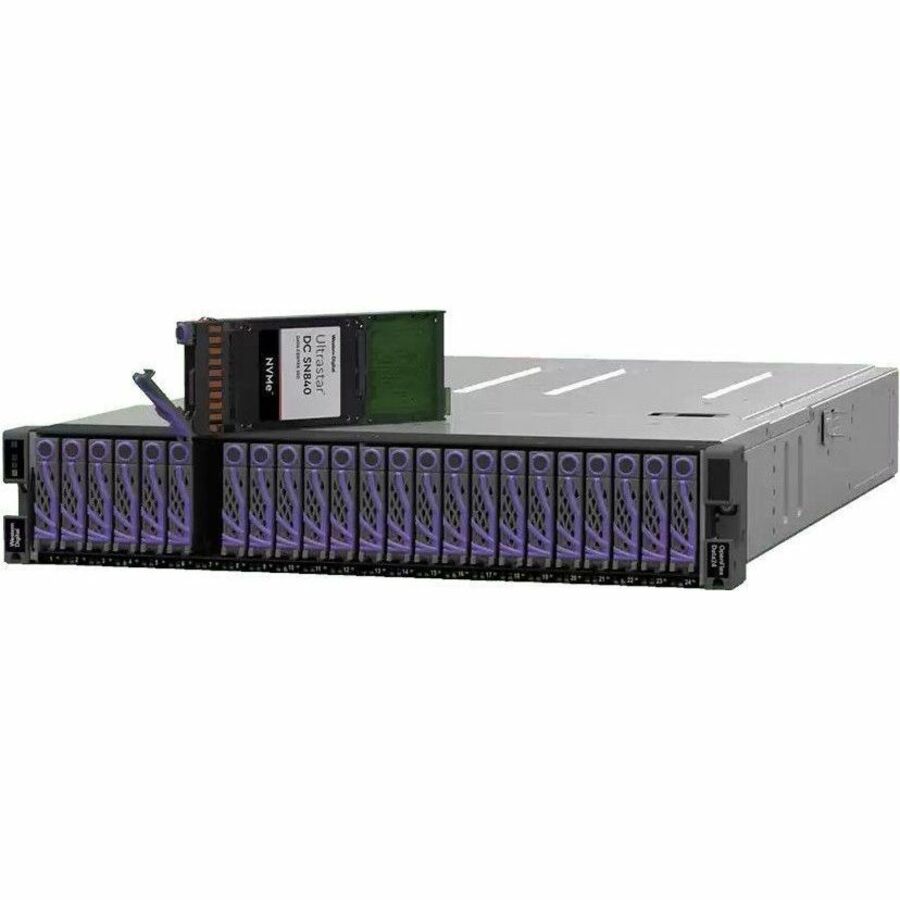

WD OpenFlex Drive Enclosure PCI Express NVMe, U.2 - 2U Rack-mountable
24 x HDD Supported - 24 x SSD Supported - 368 TB Total SSD Capacity Supported - 24 x Total Bay - Gigabit Ethernet
About This Product
Overview
Designed for High Performance
Western Digital's OpenFlex Data24 NVMe-oF Storage Platform extends the high performance of NVMe flash to shared storage. It provides low-latency sharing of NVMe SSDs over a high-performance Ethernet fabric to deliver similar performance to locally attached NVMe SSDs. Industry-leading connectivity, using Western Digital RapidFlex network adapters, allows up to six hosts to be attached without a switch.
The platform can also be specified with just two RapidFlex adapters for simpler environments and as a direct replacement for SAS external storage.
The OpenFlex Data24 NVMe-oF Storage Platform can also be used as a disaggregated storage resource in an open composable infrastructure environment. OpenFlex Data24 is built to deliver high availability and enterprise-class reliability. The entire enclosure, including SSDs, is backed with a 5-year limited warranty.
- Up to 368TB of low latency Dual Port SSDs in 2U 24-bay platform
- RDMA over Converged Ethernet (RoCE) or Transmission Control Protocol (TCP) connectivity
- Bandwidth match between SSDs (Storage) and I/O (Network) - No oversubscription
- RESTful API support for simplified management
- Vertically integrated Western Digital design: NVMe SSDs, fabric adapters and platform
- Optional dual adapter configuration for direct SAS replacement
- Industry-leading 5-year limited warranty
Quick Specifications
- Product Line
- OpenFlex
- Product Series
- 3200
- Product Type
- Drive Enclosure
- Number of Hard Drives Supported
- 24
- Number of Hard Drives Installed
- 0
- Number of Solid State Drive Supported
- 24
- Number of Solid State Drive Installed
- 24
- Total Solid State Drive Capacity Supported
- 368 TB
