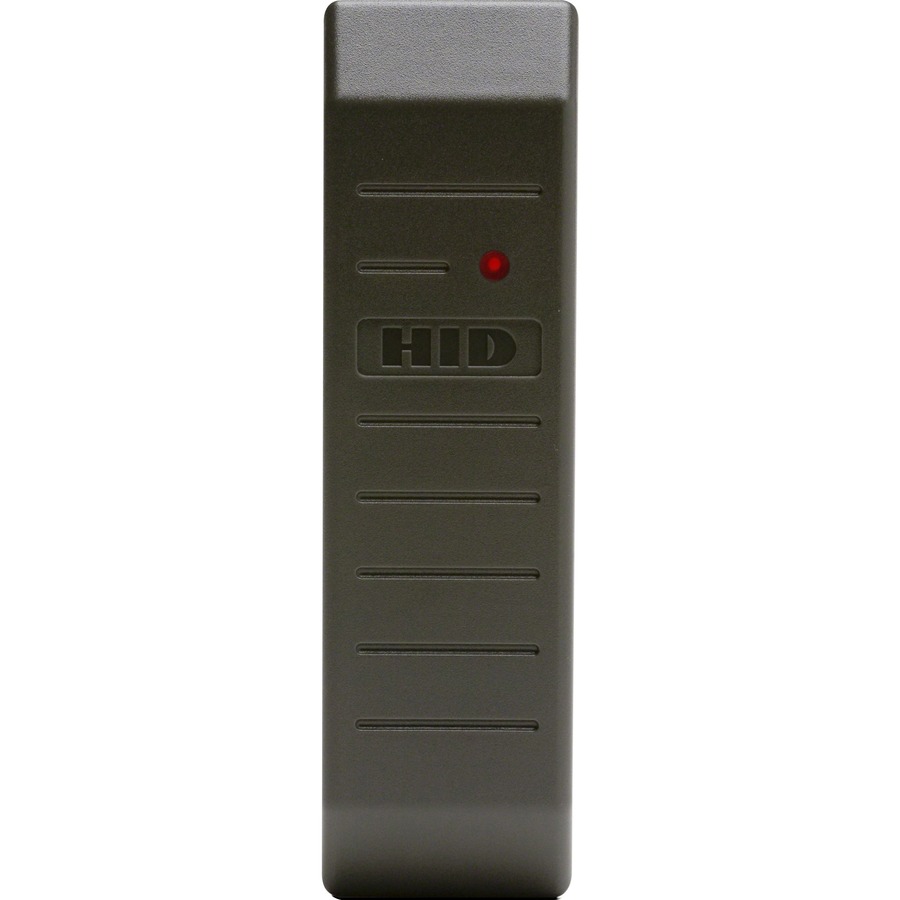

HID MiniProx Reader
Manufacturer: HID Global Corporation
Mfr. Part: 5365EGT00
5.50" Operating Range - Wiegand - Gray
About This Product
Overview
MULLION MOUNT PROXIMITY CARD READER
The MiniProx® proximity card reader's potted electronics enhance the security of the reader. The slim, attractive design is ideal for indoor or outdoor mounting.
- Accepts 5 to 16 volts, meeting most voltage requirements.
- Available with Wiegand or Clock-and-Data interface. ƒ
- Allows easy upgrade from magstripe to a proximity reader; no rewiring or pulling
- of new cable required.
- ƒOffers high reliability, consistent read-range and low power consumption in an
- easy-to-install package. ƒ Mounts directly onto metal with no change in read range performance. ƒ
- Provides multicolor LED, compatibility with all standard access control systems ƒ
- and internal or host control of LED and beeper. ƒ
- Includes multilingual installation manual.
- Hazardous Location MiniProx® Reader Mounting - Designed to mount onto a junction box included with each reader. The junction box is attached to an appropriate surface location utilizing four holes
- Security - Recognizes card formats up to 85 bits, with over 137 billion unique codes.
- Audiovisual Indication - When a proximity card is presented to the reader, the red LED flashes green and the beeper sounds. The multicolor LED and beeper can also be controlled individually by the host system.
- Diagnostics - On reader power-up, an internal self-test routine checks and verifies the setup configuration, determines the internal or external control of the LED and beeper, and initializes reader operation. An additional external loop-back test allows for the reader outputs and inputs to be verified without the use of additional test equipment.
- Indoor/outdoor Design - Sealed in a rugged, weatherized polycarbonate enclosure designed to withstand harsh environments, providing reliable performance and a high degree of vandal resistance
- Easily Interfaced - Wiegand output model interfaces with all existing Wiegand protocol access control systems. Clock-and-Data (magnetic stripe) model interfaces with most systems that accept magnetic stripe readers.
- Options - LED and beeper operation and custom label.
Quick Specifications
- Product Line
- MiniProx
- Product Model
- 5365E
- Product Type
- Smart Card Reader
- Maximum Operating Range
- 5.50"
- Host Interface
- Wiegand
- Color Family
- Gray
- Product Color
- Gray
- Height
- 6"
