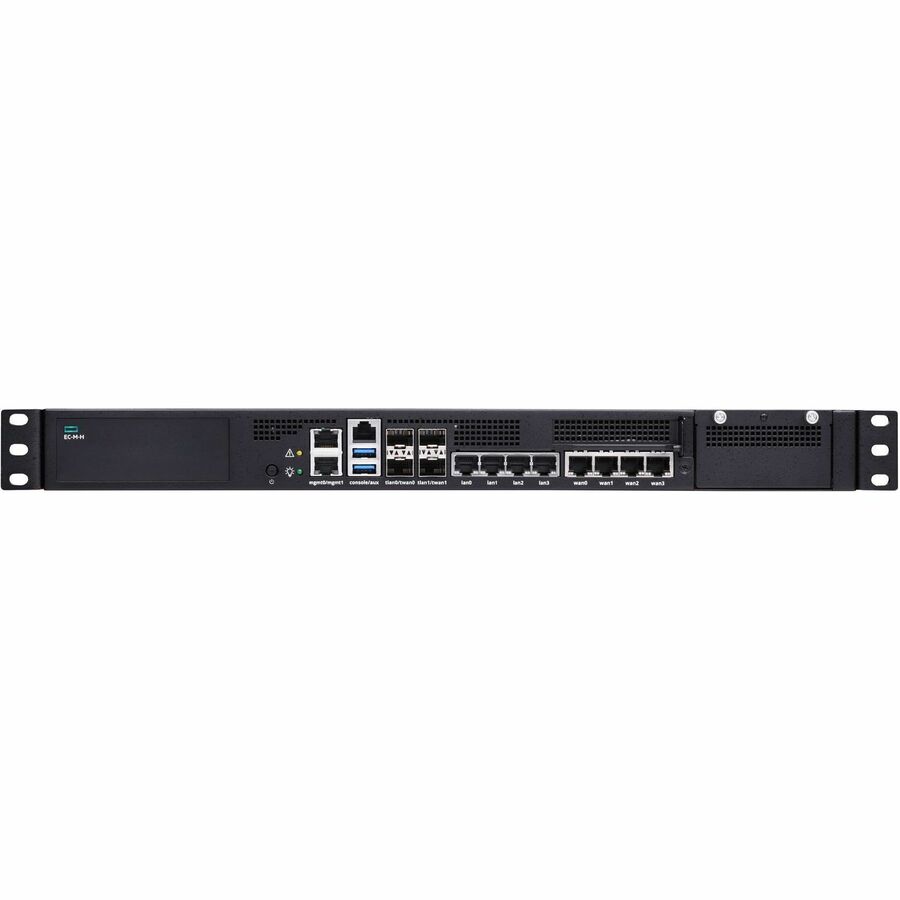

Aruba EC-M-H SD-WAN Gateway
8 Ports - 4 RJ-45 Port(s) - 4 WAN Port(s) - Management Port - 4 SFP+ Slots - 10 Gigabit Ethernet - IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q - 1U - Rack-mountable, Rail Mountable
About This Product
Overview
The HPE Aruba Networking EC-M-H SD-WAN Gateway is a 1 U rack-mountable hub gateway platform that serves to build an SD-WAN fabric using zero touch provisioning. It supports MPLS, 4G/LTE/5G, internet-based hybrid WAN transport services, and a control plane that is automated and secured by the HPE Aruba Networking WAN Orchestrator centralized management software - providing policy-based virtual network segmentation and acceleration of on-premises and SaaS cloud applications.
Key features of EC-M-H include high-availability through power supply and storage redundancy, 8 x 1 GbE RJ45 ports along with 4 x 1/10 Gbps Short Reach (SR) or Long Reach (LR) fiber optical ports, making it an ideal platform for data center and large hub environments with typical WAN bandwidth from 50 Mbps to 5 Gbps (bidirectional).
- Create a wired network with all the PCs connected with this router and share your Internet connection as well as files while checking emails
- With 10/100/1000Base-T technology, get up to 1000 mbps data transfer rate over twisted pair cable
- Management capability provides control over the router's setup and configuration
- Optimize the performance of business networks with the 10 Gigabit Ethernet connectivity
- Rack mounting enables you to organize wires & secure cables for professional installation
Quick Specifications
- Product Line
- EdgeConnect
- Product Model
- EC-M-H
- Product Type
- Router
- Total Number of Ports
- 8
- Management Port
- Yes
- Number of Network (RJ-45) Ports
- 4
- Number of WAN Ports
- 4
- Total Number of Expansion Slots
- 4
