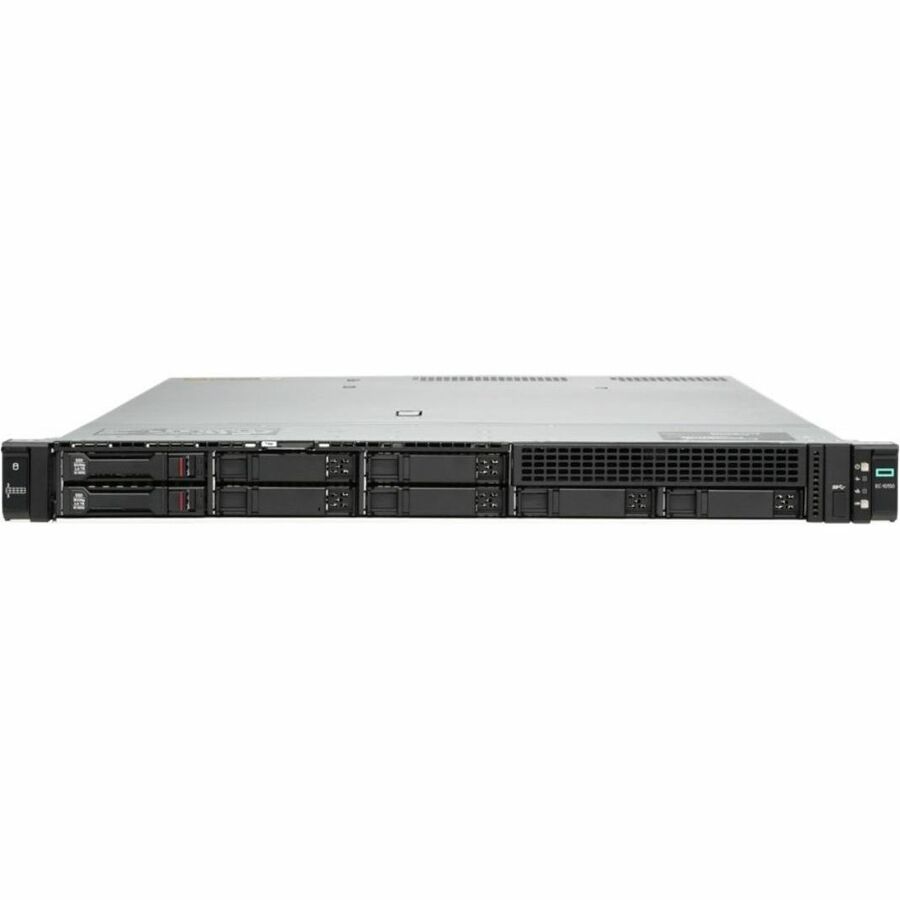

Aruba EdgeConnect EC 10150 Router

The HPE Aruba Networking EdgeConnect 10150 SD-WAN Gateway (EC-10150) is a 1U rack-mountable gateway platform designed to serve the needs of enterprise hub or data center locations. It supports Private WAN Transports, 4G/LTE/5G, and internet-based hybrid WAN transport services. The HPE Aruba Networking SD-WAN Orchestrator offers fully automated and secure management with centralized configuration of SD-WAN policy, macrosegmentation via end-to-end VRFs, and micro-segmentation via zone-based firewall and role-based policies, IDS/IPS, and Next-Gen Firewall features, all through an intuitive UI for policy, analytics, and network visibility.

Key features of the EC-10150 include high-availability support through power supply and storage redundancy, up to eight network interfaces supporting 1/10 Gbps SFP+ and/or 25 Gbps SFP28 pluggable transceivers, and two RJ45 10/100/1000M interfaces. This makes it an ideal platform for data centers and large hub environments with a typical WAN bandwidth of up to 12 Gbps (bidirectional). Additionally, the EC-10150 supports optional field-installable NVMebased network memory drives, which can be used to increase WAN optimization data deduplication capacity.
