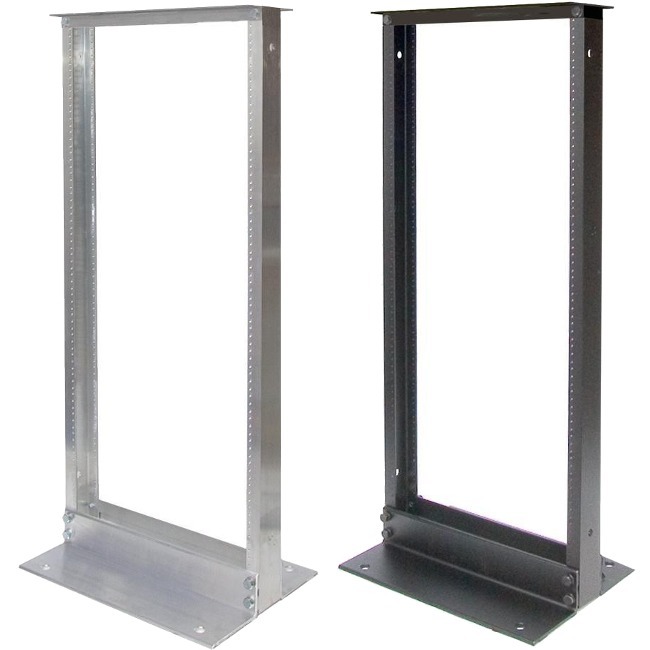

Rack Solutions 45U 2Post Rack with 12-24 Holes (23in EIA, Black)

Manufacturer: Rack Solutions
Mfr. Part: RELAY-RACK-45-B-12-23

45U Rack Height x 23" Rack Width - Floor Standing - Black Powder Coat - Aluminum - 1000 lb Maximum Weight Capacity

Rack Solutions 45U 2Post Rack with 12-24 Holes (23in EIA, Black)

About This Product

Overview

Our 2 Post Telco Rack is also commonly called a relay rack or simply telco rack. Two post network racks are primarily used to install communication and network equipment. Computing equipment can be installed in 2post server racks with the use of specialized rail kits. These rail kits allow the equipment to be installed in either a center mount or a flush mount configuration. The standard rail kits can be used to install computing equipment in a two post server rack with the addition of a relay rack conversion kit. 2 Post Data Racks are manufactured using two different methods - the highest quality server rack posts are extruded. This means the aluminum is formed and not bent. The second method used to make 2 post open frame racks is to bend flat sheets of aluminum or steel. These open frame relay racks are of lesser quality than the extruded 2 post relay racks. All of our 45U and 24U server racks are made from extruded aluminum and are the highest quality available. All of our open frame relay racks are knock down(flat-packed) and ship ready-to-assemble, making it easier to handle and store until needed.

  • 45U of Rackable Space
  • Mounting Depth Range: 3" Side Channels
  • 23" Mounting Width
  • Weight capacity, 1000 lbs (453.6 kgs)
  • High strength, 6005-T5 aluminum extrusion
  • 12-24 Threaded Holes
  • Front & Rear floor mounting holes
  • Must be anchored to floor, wall or ceiling
  • Clear or black, textured powder coat

Quick Specifications

Product Type
Rack Frame
Form Factor
Floor Standing
Color Family
Black
Product Color
Black Powder Coat
Product Material
Aluminum
Maximum Weight Capacity
1000 lb
Rack Height
45U
Rack Width
23"
