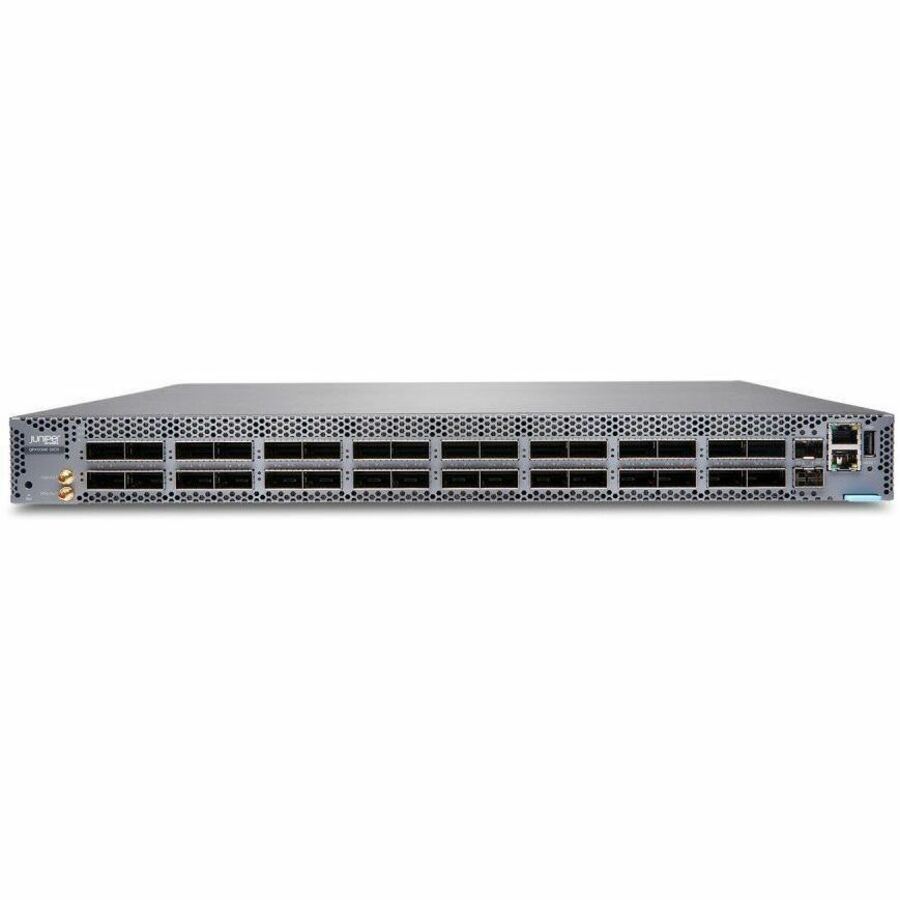

Juniper QFX5130E-32CD-AFI Ethernet Switch

Product overview

Juniper Networks QFX5130 line of Switches supports modern data center workloads that demand a top-of-rack switch with multiple speeds. The highspeed, high-density, cost optimized 1 U fixed platform is ideal for spine-and-leaf IP fabrics. Supporting 400GbE, 200GbE, 100GbE, 50GbE, 40GbE, 25GbE, and 10GbE connections and offering advanced L2/L3 features, and secure ZTP, the QFX5130 line enables network operators to build large, next-generation IP fabrics. The switches are based on a proven, Internet-scale software suite with best-in-class automation and management capabilities.

Product description

Juniper Networks® QFX5130 line of Switches is a high-radix, high-density, 1 U platform suitable for today's data centers. The four options are a perfect choice for leaf, border leaf, and spine roles within IP networks, as well as Ethernet VPN - Virtual Extensible LAN (EVPN-VXLAN) fabrics. For large public cloud providers-early adopters of highperformance servers to meet increasing workload growth-the QFX5130 line supports very large, dense, and fast 400GbE IP fabrics based on proven, Internet-scale technology. For enterprise data center customers seeking investment protection as they transition their server farms from 10GbE to 25GbE, the QFX5130 line switch provides a high radix-native 100GbE/400GbE EVPN-VXLAN option with reduced power and a smaller footprint.

Additional Remote Direct Memory Access over Converged Ethernet (RoCEv2) capabilities in the QFX5130 line make it suitable in IP storage deployments. Instead of relying on deep buffer switching, QoS mechanisms such as Priority-based Flow Control-DiffServ code point (PFC-DSCP) and Explicit Congestion Notification (ECN) help deliver high performance for storage workloads. Support for high-power 400G-ZR and 400G-ZR-M optics makes it suitable for edge and DCI use cases.

Product options

The QFX5130 line of Switches includes four compact 1 U platforms-QFX5130-32CD, QFX5130E-32CD, QFX5130-48C, and QFX5130-48CM. All provide high speeds, high densities, and a rich set of Junos® OS Evolved operating system features.

The Juniper Networks QFX5130-32CD and QFX5130E-32CD switches are nextgeneration, fixed-configuration spine-and-leaf switches featuring:

• 32 400G QSFP-DD ports in 1 U form factor
• Up to 25.6 Tbps (bidirectional)/5.3 bpps throughput

Using breakout cables, each of the 32 400GbE QSFP-DD ports can be broken into four 100/25/10GbE ports, increasing the total number of supported 100/25/10GbE ports per switch to 128.

The Juniper Networks QFX5130-48C and QFX5130-48CM (MACsec) Switch is a next-generation, high-density, and cost-efficient 100GbE and 400GbE optimized fixed system featuring:

• Native 48 SFP56-DD100GbE ports for server connectivity
• Native 8 QSFP-DD 400GbE uplink ports
• Up to 16 Tbps (bidirectional)/2.7 bpps throughput
• With MACsec enabled on QFX5130-48CM:
  • Up to 9.6 Tbps (bidirectional)/2.7 bpps MACsec encryption support
  • 32x 100G SFP56-DD and 4x 400G QSFP-DD MACsec port support

Product highlights

Increased scale and buffer

The QFX5130-32CD switch provides enhanced scale with up to 1.24 million routes, 80,000 firewall filters, and 160,000 media access control (MAC) addresses. It supports high numbers of egress IPv4/IPv6 rules by programming matches in egress ternary content addressable memory (TCAM) along with ingress TCAM.
