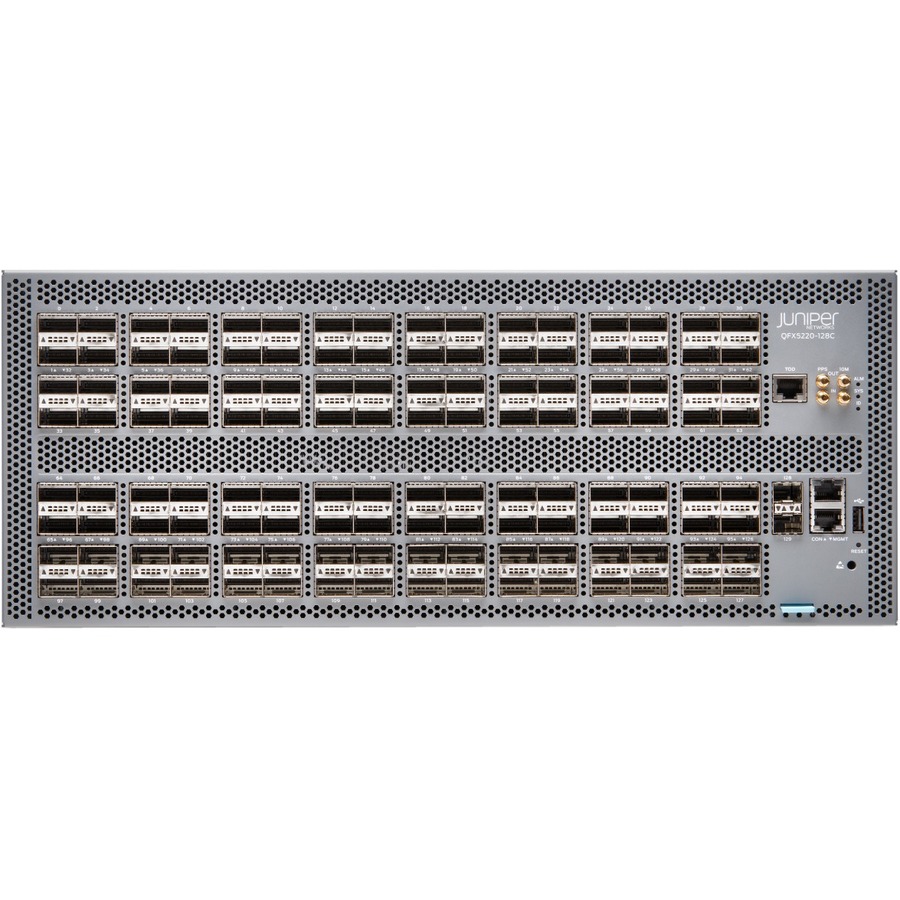

Juniper QFX5220-128C Ethernet Switch
Manageable - 3 Layer Supported - Modular - 2023 W Power Consumption - Optical Fiber - 4U - Rack-mountable - 1 Year Limited Warranty
About This Product
Overview
The QFX5220-128C offers 128 ports of 100-Gigabit Ethernet in a 4-U form factor. With 12.8 terabits per second (Tbps) bandwidth, the QFX5220-128C is optimally designed as a data aggregation or top-of-rack switch for small to medium size data centers and Massively Scalable Data Center (MSDC) deployments. The 100-Gigabit Ethernet ports can be configured either for 100-Gbps or 40-Gbps speeds. The 100-Gbps ports can also be channelized into 4 x 25 Gbps or 4 x 10 Gbps. There are two dedicated small-form factor plugable plus (SFP+) ports for 10 Gigabit or 1 Gigabit Ethernet support.
An Intel Xeon D-1518 processor drives the QFX5220 control plane, which runs the Junos OS Evolved software. The Junos OS Evolved software image is stored on two internal 50-GB solid-state drives (SSDs). The QFX5220-128C is available with ports-to-FRUs airflow (Airflow Out) and with AC or DC power supplies.
- Effectively reduces downtime with improved network performance
- Can work as layer 3 routing for scalable network design
- Rack mounting enables you to organize wires & secure cables for professional installation
- Managed switch provides a reliable foundation for your network
- 100 Gigabit Ethernet provides high bandwidth performance, ease of use and reliability for your network backbone
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Quick Specifications
- Product Series
- QFX5200
- Product Model
- QFX5220-128C
- Product Type
- Ethernet Switch
- Modular
- Yes
- Port/Expansion Slot Details
- 128 x 100 Gigabit Ethernet Expansion Slot 2 x 10 Gigabit Ethernet Expansion Slot
- Media Type Supported
- Optical Fiber
- Ethernet Technology
- 100 Gigabit Ethernet 10 Gigabit Ethernet
- Network Technology
- 10GBase-X 100GBase-X
