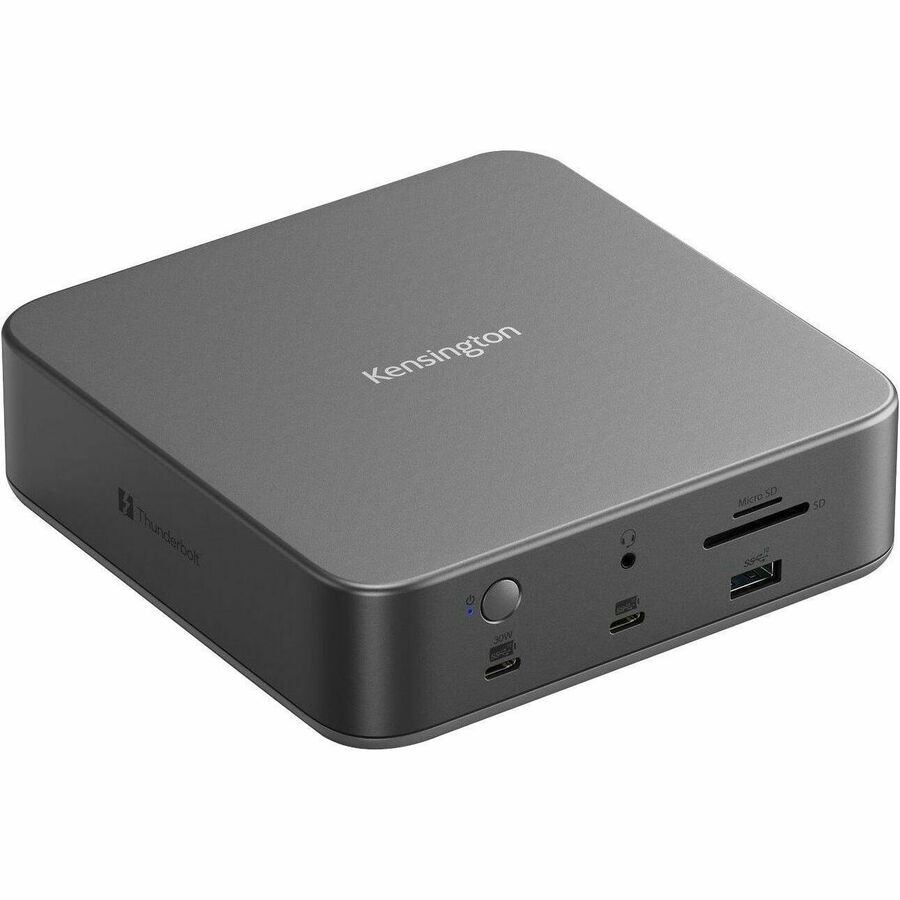

Kensington SD5010T5 EQ Thunderbolt 5 Triple 4K Docking Station (2 x HDMI) - Windows/macOS
for Notebook, Monitor, Workstation, MacBook, Display, Headphone, Microphone - Charging Capability - Memory Card Reader - SD, microSD - 180 W Power Supply - 13 Port(s) - Thunderbolt 5 - 3 Displays Supported - 4K @ 144Hz, 4K @ 60Hz, 6K @ 60Hz, 4K @ 240Hz, 4K @30Hz, FHD @ 120Hz, 8K @ 60Hz, 4K, 8K, 6K - 3840 x 2160, 6144 x 3456, 1920 x 1080, 7680 x 4320 - 5 x USB Ports - 3 x USB Type-A Ports - USB Type-A - 2 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - HDMI - 2
About This Product
Overview
Boost Your Productivity with Thunderbolt™ 5
SD5010T5 offers lightning-fast data transfers, achieving speeds up to 80Gbps and Bandwidth Boost providing up to 120Gbps for video-intensive usage.
Triple 4K or Dual 8K for Windows and Dual 6K+4K for macOS
Supports up to 3 x 4K monitors @ 144Hz or 2 x 8K @ 60Hz/30Hz monitors for Windows laptops via two HDMI® ports and one Thunderbolt™ 5 port. For MacBook models with M4/M5 base chips* and M-Series Pro and Max chipsets, it supports 2 x 4K @ 60Hz via two HDMI® ports, or you can switch one of the displays to up to 6K through the Thunderbolt™ 5 port. *M1/M2 base chips support a single external display only. M3 base supports two external displays with the lid closed.
Up to 140W Dynamic Power Delivery + KonstantCharge™
Perfect for demanding workstations, this single-cable Thunderbolt™ 5 dock supports USB-C® PD 3.1, ensuring seamless power and connectivity with up to 140W dynamic power delivery. Includes KonstantCharge™, enabling connected devices to charge even when your laptop is undocked.
13-in-1 Design
A single Thunderbolt™ 5 cable expands your connectivity: 2 x Thunderbolt™ 5 (host + 15W downstream), 2 x HDMI®, 1 x USB-A 3.2 Gen2 10Gbps, 2 x USB-A 3.2 Gen1 5Gbps, 2 x USB-C® Gen2 10Gbps (1 x 30W), an audio combo jack, 2 x SD/Micro SD 4.0 slots, and 2.5Gbps Ethernet.
Built-in SD and Micro SD Card Readers
Perfect for graphic designers, video editors, and animators requiring fast and efficient data transfer speeds, the SD5010T5 transfers files at ultra-fast speeds via built-in SD and Micro SD 4.0 card readers.
Universal Compatibility
Offers a quick and powerful plug-and-play solution for Thunderbolt™ 5, Thunderbolt™ 4, USB4®, and USB-C® devices running Windows 11 (23H2 or later) or macOS (14.5 or later).
Zero-Footprint Mounting Option and Security Cable Lock Slots
Maximize desktop space by mounting your docking station out of the way. Mounting bracket sold separately (K34050WW). Protect your investment with a Kensington cable lock (K65020WW or K65021WW), sold separately.
Free Kensington DockWorks™ Software and 3-Year Limited Warranty
Free DockWorks™ software for Windows users delivers the best connection, performance, and security from your Kensington dock. Backed by Kensington with a 3-year limited warranty.
Sustainability Attributes
The outer case of this docking station contains 100% post-consumer recycled (PCR) aluminum - and it is delivered in Forest Stewardship Council (FSC®) certified packaging.
- Data transfer speeds up to 80Gbps.
- Bandwidth Boost offers up to 120Gbps for video-intensive usage.
- Up to Triple 4K or Dual 8K for Windows and Dual 6K+4K for macOS.
- Up to 140W dynamic Power Delivery for laptop and connected devices.
- 13-in-1 design supports seamless connectivity for a variety of setups.
- Bulit-in SD and Micro SD card readers provide ultra-fast file transfers.
- Plug-and-play for Thunderbolt™ 5, Thunderbolt™ 4, USB4®, and USB-C® devices.
- Windows 11 (23H2 or later) or macOS (14.5 or later).
- Zero-footprint mounting option for tidier workspace .
- Security cable lock slots compatible with Kensington laptop locks.
Quick Specifications
- Product Model
- SD5010T5
- Packaged Quantity
- 1 Box
- Package Type
- Retail
- Product Type
- Docking Station
- Connectivity Technology
- Wired
- Charging Capability
- Yes
- Number of Displays Supported
- 3
- Supported Resolutions
- 3840 x 2160 6144 x 3456 1920 x 1080 7680 x 4320
