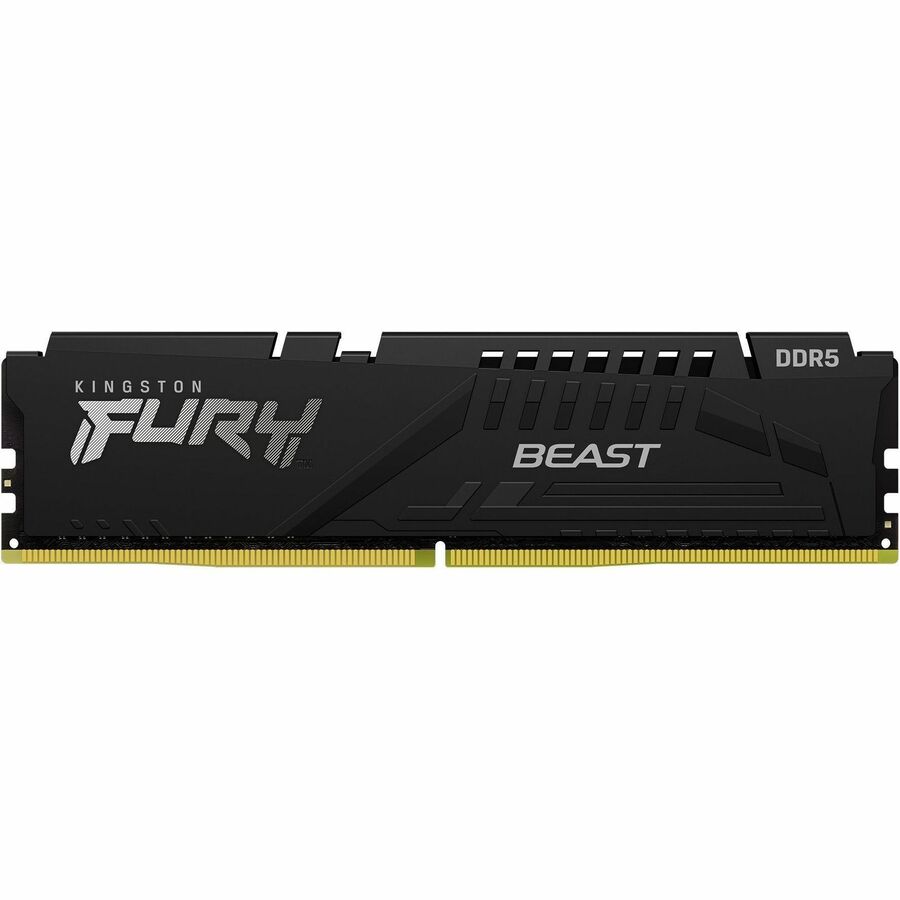

Kingston 8GB (1x8GB) DDR5 6000MT/s CL30 FURY Beast Black EXPO
Manufacturer: Kingston Technology Company
Mfr. Part: KF560C30BBE-8
8 GB (1 x 8GB) - DDR5-6000/PC5-48000 DDR5 SDRAM - 6000 MHz Single-rank Memory - CL30 - 1.40 V - Non-ECC - Unbuffered - 288-pin - DIMM - Lifetime Warranty
About This Product
Overview
Kingston FURY KF560C30BBE-8 is a 1G x 64-bit (8GB) DDR5-6000 CL30 SDRAM (Synchronous DRAM) 1Rx16, memory module, based on four 1G x 16-bit FBGA components per module. The module supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-6000 at a low latency timing of 30-36-36 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
FACTORY TIMING PARAMETERS
- Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
- EXPO Profile #0: DDR5-6000 CL30-36-36 @1.4V
- EXPO Profile #1: DDR5-5600 CL40-40-40 @1.25V
- XMP Profile #1: DDR5-6000 CL30-36-36 @1.4V
- XMP Profile #2: DDR5-5600 CL40-40-40 @1.25V
FEATURES
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- Height 1.37" (34.9mm), w/heatsink
- Enables efficient and smooth execution of all your heavy-duty applications with maximum productivity
- Up to 6000 MHz speed with unbuffered signal and CL30 latency for smooth computer performance
- 8 GB of memory makes a perfect symmetry with your latest model processor and boosts up your computer's performance
- With DDR5 SDRAM get efficient data transfer rate and enhanced computer's performance
- 1 x 8GB modules for quick access and retrieval of data and information to ensure maximum usability
- 288-pin for faster, dependable performance and better access to data and information
- CL30 CAS latency for faster, dependable clock cycles which allows quick access and retrieval of data and information
- DIMM form factor with 288-pin and 8 GB memory size for enhanced performance and speed to allow maximum usability
- Unbuffered signal processing provides reliable optimization for your required applications to allow maximum usability
Quick Specifications
- Product Line
- FURY Beast
- Product Type
- RAM Module
- Memory Size
- 8 GB
- Memory Technology
- DDR5 SDRAM
- Memory Voltage
- 1.40 V
- Number of Modules
- 1 x 8GB
- Memory Speed
- 6000 MHz
- Memory Standard
- DDR5-6000/PC5-48000
