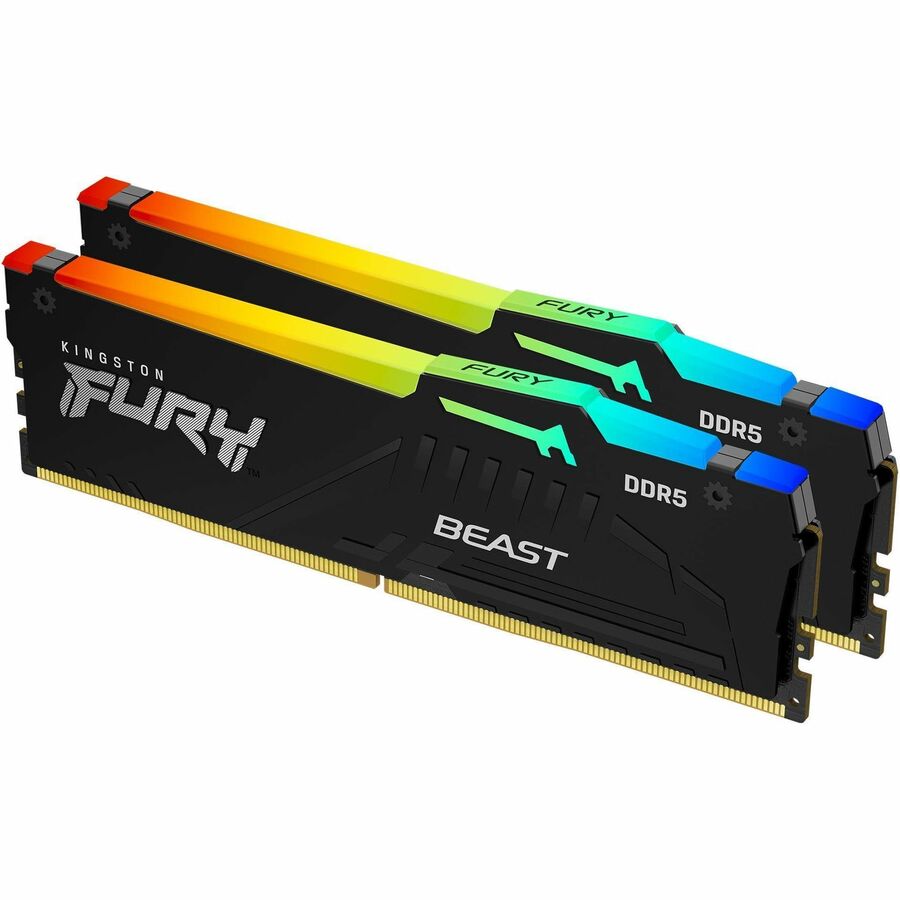

Kingston 64GB (2x32GB) DDR5 6400MT/s CL32 FURY Beast Black RGB EXPO
64 GB (2 x 32GB) - RGB - DDR5-6400/PC5-51200 DDR5 SDRAM - 6400 MHz Dual-rank Memory - CL32 - 1.40 V - Non-ECC - Unbuffered - 288-pin - DIMM - Lifetime Warranty
About This Product
Overview
Kingston FURY KF564C32BBEAK2-64 is a kit of two 4G x 64-bit (32GB) DDR5-6400 CL32 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 64GB. Each module has been tested to run at DDR5-6400 at a low latency timing of 32-39-39 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
FACTORY TIMING PARAMETERS
- Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
- EXPO Profile #0: DDR5-6400 CL32-39-39 @1.4V
- EXPO Profile #1: DDR5-6000 CL30-36-36 @1.4V
- XMP Profile #1: DDR5-6400 CL32-39-39 @1.4V
- XMP Profile #2: DDR5-6000 CL30-36-36 @1.4V
FEATURES
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- Height 1.66" (42.23mm), w/heatsink
- Allow convenient and fast access to the stored information your computer is actively using for maximum efficiency
- No matter how heavy and numerous the applications that you are using, 6400 MHz memory speed with CL32 latency will run them smoothly
- DIMM 64 GB of memory to maintain symmetry with processor and hard drive and bring out the ultimate computing experience
- The DDR5 SDRAM efficiently move data across electric components and provide smooth PC performance
- 2 x 32GB modules for quick access and retrieval of data and information to ensure maximum usability
- 288-pin for optimal performance and maximum reliability
- CL32 CAS latency for faster, dependable clock cycles which allows quick access and retrieval of data and information
- DIMM form factor with 288-pin and 64 GB memory size for enhanced performance and speed to allow maximum usability
- Unbuffered signal processing for dependable programmability of the processor for easy optimization of digital signals
Quick Specifications
- Product Line
- FURY Beast
- Product Type
- RAM Module
- Memory Size
- 64 GB
- Memory Technology
- DDR5 SDRAM
- Memory Voltage
- 1.40 V
- Number of Modules
- 2 x 32GB
- Memory Speed
- 6400 MHz
- Memory Standard
- DDR5-6400/PC5-51200
