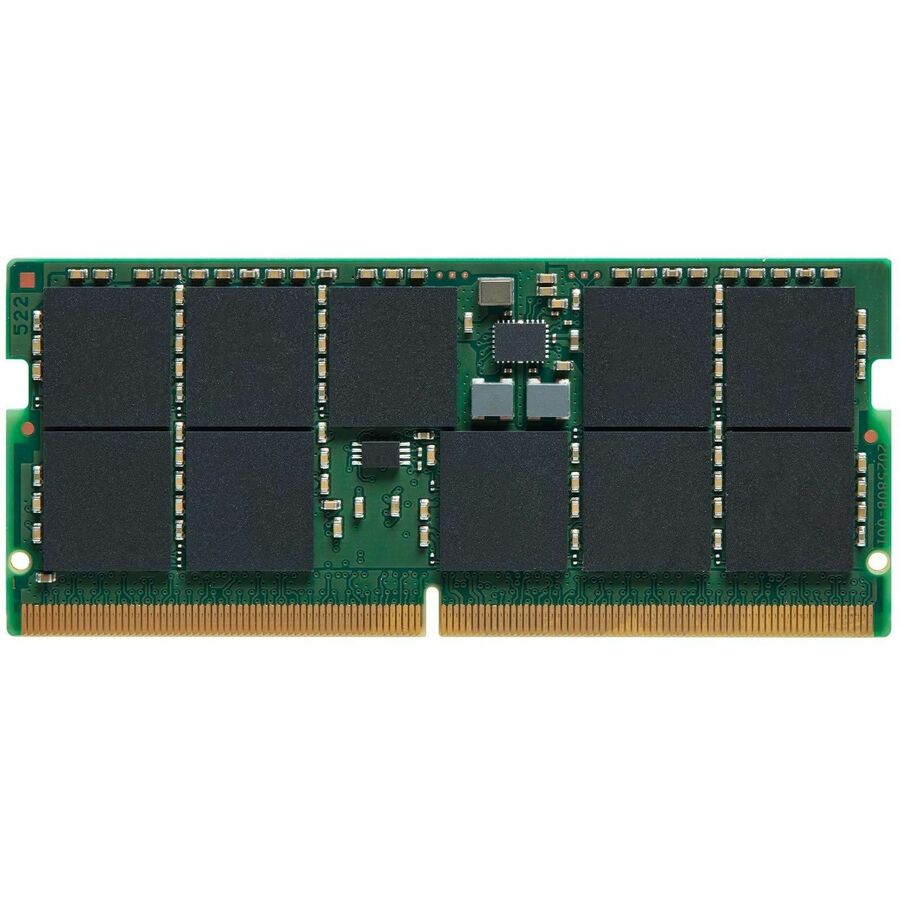

Kingston Server Premier RAM Module
Manufacturer: Kingston Technology Company
Mfr. Part: KSM56T46BD8KM-48HM
For Server - 48 GB - DDR5-5600/PC5-44800 DDR5 SDRAM - 56000 MHz Dual-rank Memory - CL46 - 1.10 V - On-die ECC - Unbuffered - 262-pin - SODIMM - Lifetime Warranty
About This Product
Overview
Kingston's KSM56T46BD8KM-48HM is a 6G x 72-bit (48GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM) w/ parity, 2Rx8, ECC, memory module, based on twenty 3G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers.
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- x72 ECC (x36, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C
- PCB: Height 1.18" (30mm)
- RoHS Compliant and Halogen-Free
Quick Specifications
- Product Line
- Server Premier
- Product Type
- RAM Module
- Memory Size
- 48 GB
- Memory Technology
- DDR5 SDRAM
- Memory Voltage
- 1.10 V
- Memory Speed
- 56000 MHz
- Memory Standard
- DDR5-5600/PC5-44800
- Memory Rank
- Dual-rank
