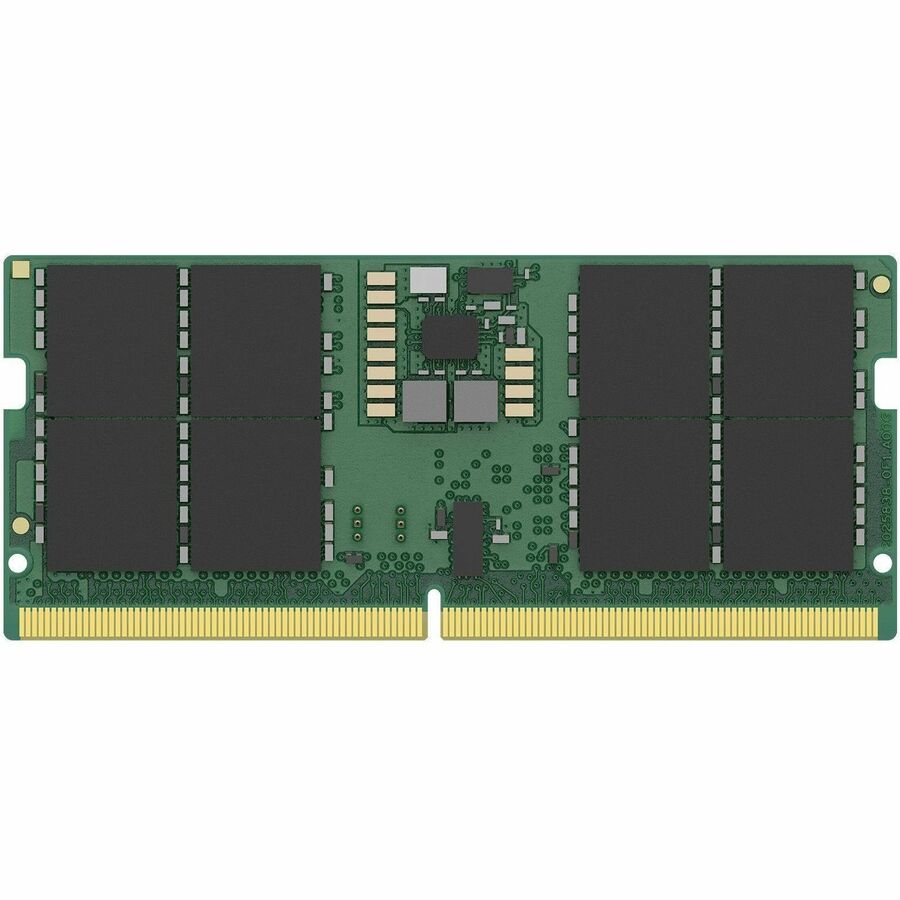

Kingston ValueRAM RAM Module
Manufacturer: Kingston Technology Company
Mfr. Part: KVR64V52BS8-32
32 GB - DDR5-6400/PC5-51200 DDR5 SDRAM - 6400 MHz Single-rank Memory - CL52 - 1.10 V - Non-ECC - 262-pin - CSODIMM
About This Product
Overview
This document describes ValueRAM's KVR64V52BS8-32 is a 4G x 64-bit (32GB) DDR5-6400 CL52 Clocked Small Outline DIMMs (CSODIMMs), 1Rx8, memory module, based on eight 4G x 8-bit FBGA components and one Clock Driver (CKD). The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 262-pin CSODIMM uses gold contact fingers.
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- PCB: Height 1.18" (30.00mm)
- RoHS Compliant and Halogen-Free
- With Clock Driver
Quick Specifications
- Product Line
- ValueRAM
- Product Type
- RAM Module
- Memory Size
- 32 GB
- Memory Technology
- DDR5 SDRAM
- Memory Voltage
- 1.10 V
- Memory Speed
- 6400 MHz
- Memory Standard
- DDR5-6400/PC5-51200
- Memory Rank
- Single-rank
