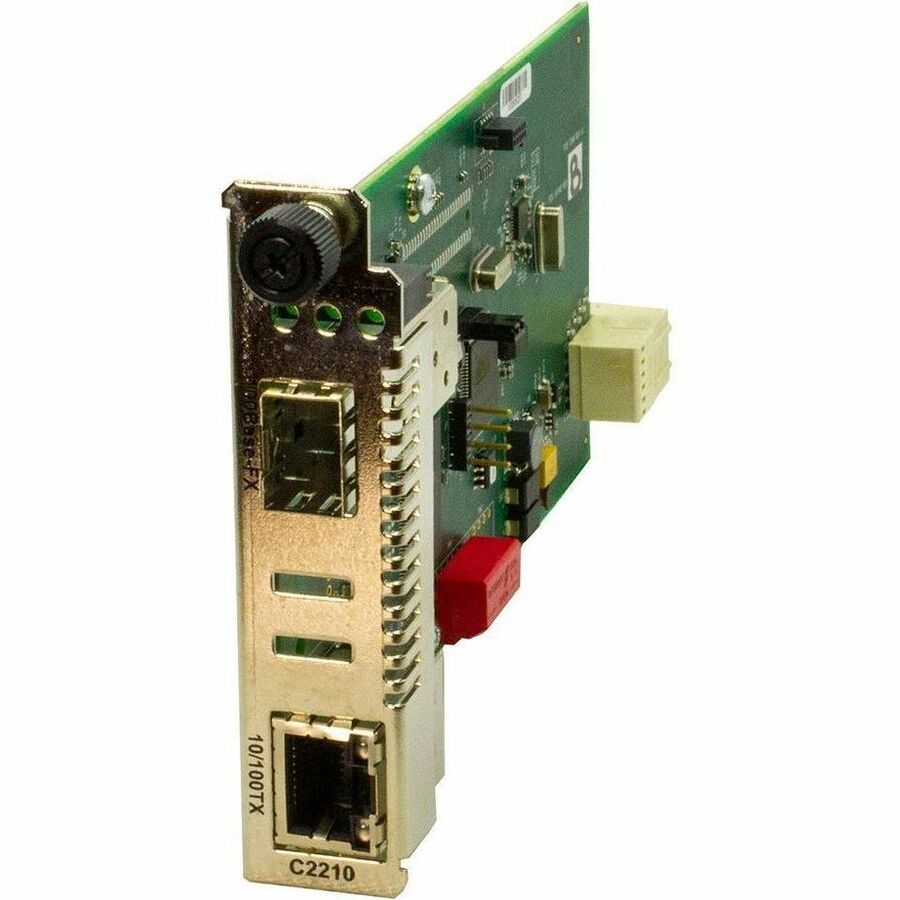

Transition Networks ION Fast Ethernet Media and Rate Converter Module
Manufacturer: Lantronix, Inc
Mfr. Part: C2210-1040
1 x Network (RJ-45) - Fast Ethernet - 10/100Base-TX, 100Base-FX, 100Base-BX - 0.10 km - 1 x Expansion Slots - SFP - 1 x SFP Slots - DC
About This Product
Overview
The ION C2210 is a media converter module that provides an interface between 10/100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into 10/100 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10Base-T copper devices to connect to 100Base-FX fiber. The ION C2210 is a manageable device when installed in a managed ION chassis.
- Auto-Negotiation of speed and duplex on TP port
- Auto-MDI/MDIX on TP port
- Link Pass Through (LPT)
- Far-End-Fault (FEF) detection
- Pause (Software Controlled)
- Automatic Link Restoration
- Field Upgradeable Firmware
- Can be used in any ION Platform Chassis
- Standards based, will link with any standard 10/100Base-TX and any standard 100Base-FX ports
Quick Specifications
- Product Line
- ION
- Product Series
- C2210
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 1
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 1
- Media Type Supported
- Twisted Pair Optical Fiber
- Maximum Distance Supported
- 0.10 km
