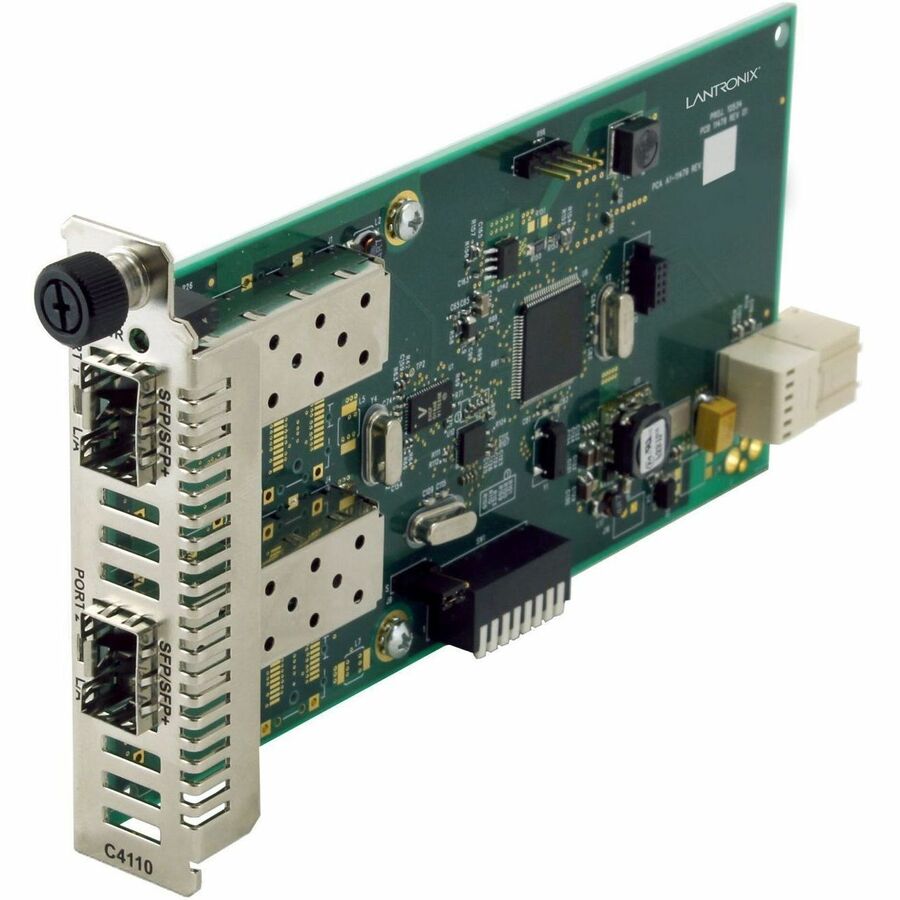

Lantronix ION Fiber to Fiber Media Converter Module
Single-mode, Multi-mode - 10 Gigabit Ethernet - 10GBase-X - 11.23 Gbit/s - 2 x Expansion Slots - SFP+ - 2 x SFP+ Slots - Plug-in Module - TAA Compliant
About This Product
Overview
The C4110 is a fiber to fiber media converter module. It is protocol independent and supports data rates from 1Gbps to 11.5Gbps through two open SFP+ ports. This allows network managers to customize the C4110 with a pair of SFP+ modules to meet their network requirements. The open SFP+ port supports a wide variety of Lantronix 10Gbps SFP+ fiber modules. This any-rate to same-rate converter can be used to perform reliable and cost-effective single mode to multimode conversion or it can be used to provide wavelength conversion in CWDM applications. The ION C4110 is a manageable device when installed in a managed ION chassis.
- Fiber to fiber repeater
- Remotely Managed when installed in a Managed ION Chassis
- Supports data rates from 1Gbps to 11.5Gbps
- Support Any-rate to Same-rate
- Protocol Transparent supports: Ethernet: 10Gig LAN, 10Gig Wan, 1Gig LAN, Fiber Channel: 10, 8, 4, 2, 1Gig, SONET/SDN OC-192, OC-48
- SFP to SFP or SFP+ to SFP+
- Provides conversion between different types of fiber
- Supported transmission distance based on the SFP modules and type of fiber used
- Supports 3R (Reamplify, Reshape, and Retime) signal regeneration
- No frame size limitations
- Use as a fiber mode converter
- Use as a specific wavelength CWDM Transponder
- Also available as a stand-alone converter: S4110-4848
Quick Specifications
- Product Series
- C4110
- Product Type
- Transceiver/Media Converter
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Single-mode Multi-mode
- Maximum Data Transfer Rate
- 11.23 Gbit/s
- Total Number of Expansion Slots
- 2
- Expansion Slot Type
- SFP+
- Number of SFP+ Slots
- 2
