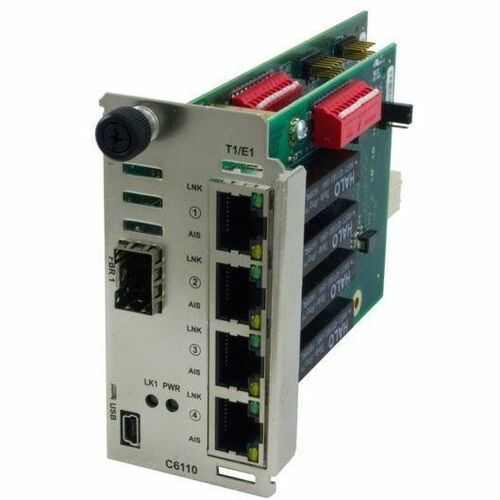

Transition Networks ION DS1 - T1/E1/J1 Network Interface Device Module
Single-mode, Multi-mode - Fast Ethernet - 100Base-X/OC-3, T1/E1/J1 - 1.50 km - 1 x Expansion Slots - SFP - 1 x SFP Slots
About This Product
Overview
The ION C6110 is a managed T1/E1/J1 mux media converter module that provides a solution for those users that need to extend multiple T1/ E1/J1 connections over fiber. The C6110 includes (4) RJ-48 ports and (1) fiber port. The device supports SFP fiber modules offering support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure.
The C6110 converter must be used in pairs. A typical installation will include a modular card installed in a managed ION chassis linked over fiber to a stand-alone S6110 in a remote location.
- (4) RJ-48 copper interfaces
- (1) fiber interface (SFP)
- Loopback via test set
- Local and remote loopbacks
- LEDs for device status and troubleshooting
- Settings for line code, line build out, loopbacks and Alarm Indication Signal (AIS)
- Access to complete status and configuration on local and remote device
- Remote firmware upgrade
- Remote management
- Must be used in pairs
Quick Specifications
- Product Line
- ION
- Product Model
- C6110-1040
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 4
- Media Type Supported
- Twisted Pair Optical Fiber
- Fiber Mode Supported
- Single-mode Multi-mode
- Maximum Distance Supported
- 1.50 km
- Total Number of Expansion Slots
- 1
