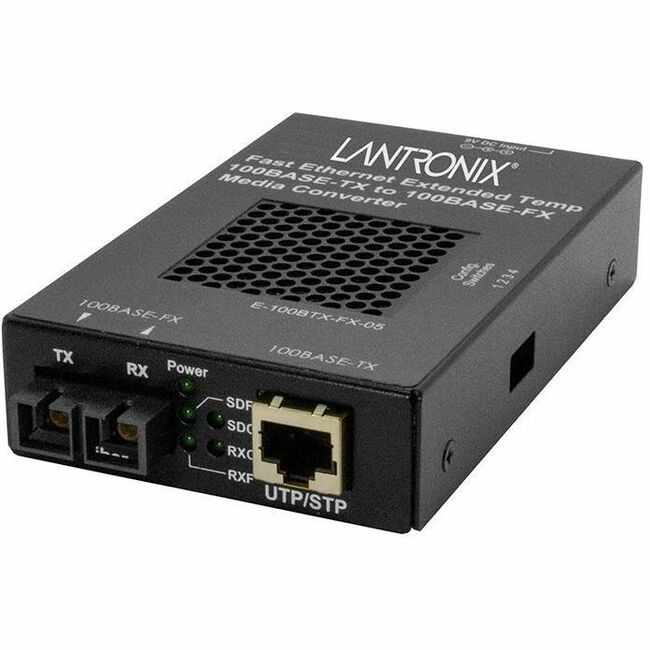

Lantronix E-100BTX-FX-05(SCHT) Transceiver/Media Converter
1 x Network (RJ-45) - 1 x SC Ports - Multi-mode - 1300 nm Fiber - Fast Ethernet - 100Base-TX, 100Base-FX - 100 Mbit/s - 2 km - AC/DC - Standalone, Wall Mountable, DIN Rail Mountable, Shelf Mount - TAA Compliant
About This Product
Overview
Unmanaged Hardened Fast Ethernet Media Converter
(1) 100Base-TX Port + (1) 100Base-FX Port
The E-100BTX-HT Series is a Hardened Ethernet stand-alone media converter that provides an interface between 100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into extreme 100Base-TX copper environments, by supporting an operating temperature range of -25°C to 65°C. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.
- Extended Temperature Capable: Designed to operate in environments where ambient temperatures can rise as high as 65°C (149°F)
- Auto-Negotiation
- Auto-MDI/MDIX
- Link Pass Through
- Far-End-Fault Detection
- Automatic Link Restoration
- Pause
Quick Specifications
- Product Series
- E-100BTX-HT
- Product Model
- E-100BTX-FX-05(SCHT)
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 1
- Number of SC Ports
- 1
- Media Type Supported
- Optical Fiber Twisted Pair
