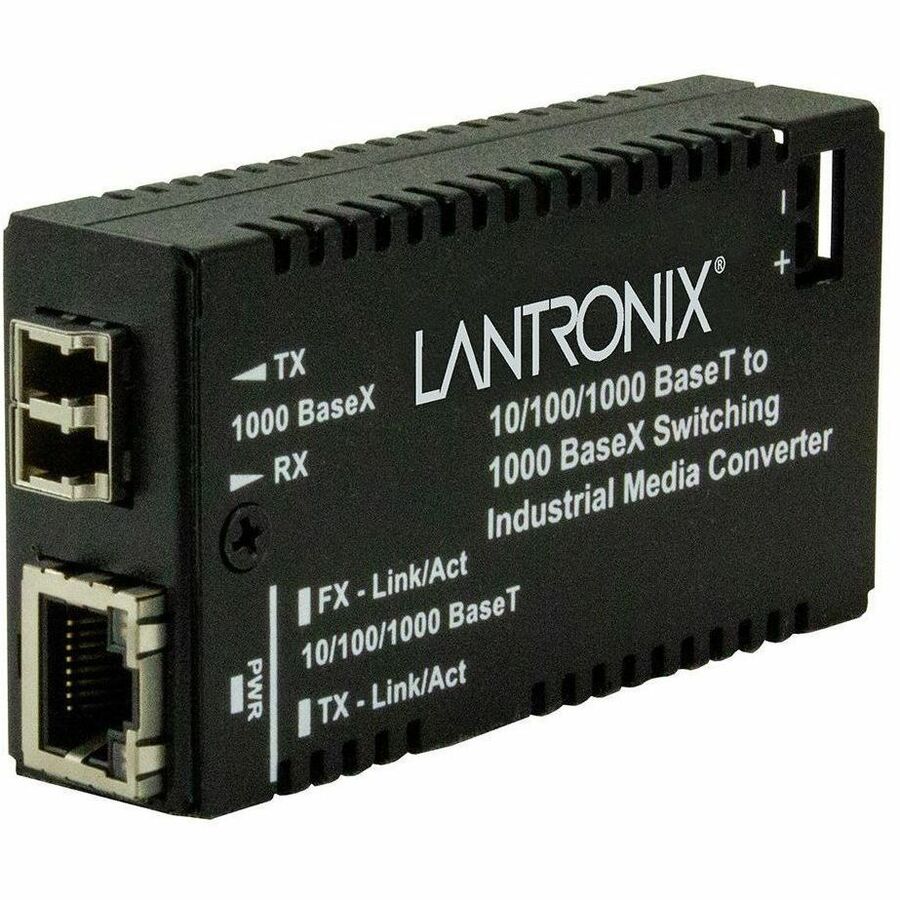

Hardened Mini Powered Device Gigabit Ethernet Media Converter 10/100/1000Base-T to 1000Base-X
Manufacturer: Lantronix, Inc
Mfr. Part: M/GE-ISW-SFP-01
10/100/1000 BASETX TO 1000 BASEFX INDUSTRIAL MC
About This Product
Overview
The M/GE-ISW Series is an hardened Gigabit Ethernet Mini media converter that provides cost effective media conversion between 10/100/1000Base-T ports and 1000Base-SX/LX ports for hardened or outdoor environments. With its supported operating temperature range of -40°C to +75°C, the Mini offers a space saving alternative for converting copper to fiber in extreme environments. NDAA Compliant, TAA Compliant
- Unit & Port LEDs allow for quick status information
- Auto-Negotiation
- Fixed Full-Duplex on Fiber
- Auto-MDI/MDIX on copper port
- Active Link Pass Through
- Jumbo Frame up to 10240Bytes
- Supports DC and AC Input Power via terminal block
- If the voltage of your power source doesn't match the device input power, external power supplies are available
- Includes barrel connector pig-tail cable
- Multiple mounting options
- DIN Rail clip and Velcro included
- Wall mount bracket sold separately
- Overload Current Protection
- Reverse Polarity Protection
Quick Specifications
- Product Model
- M/GE-ISW-SFP-01
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 1
- Network (RJ-45)
- Yes
- DVI
- No
- USB
- No
- Management Port
- No
- Number of Network (RJ-45) Ports
- 1
