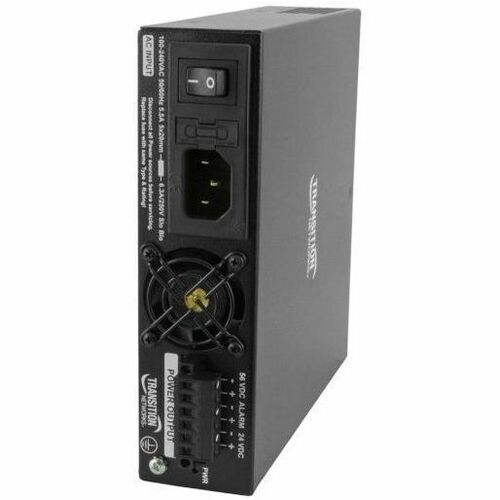

Transition Networks Stand-Alone Hardened Power Supply
Manufacturer: Lantronix, Inc
Mfr. Part: PS-DC-DUAL-5624T-BR
Compact - 24 V DC, 56 V DC Output - 345 W, 315 W, 30 W - Active PFC - 1 Fan(s) - TAA Compliant
About This Product
Overview
This stand-alone power supply is designed to offer dual DC power output in extended temperature environments. It has a compact form factor and can be DIN rail mounted.
- Compact Stand-Alone or DIN Rail form factor
- Wide 100 - 240VAC power input with externally accessible fuse
- Dual Output: 315W at 56VDC and 30W at 24VDC, Terminal Block Connectors
- Maximum output: 345 Watts
- Full compliance with IEEE 2250VDC PoE isolation requirements
- Active fan speed control based on temperature
- Front panel LED to indicate the status of power supply, fan faults and temperature
- 2-Pin alarm DC relay output with 5 event monitoring
- Fan tachometer monitoring for low speed or lock conditions
- Over or under temperature
- 24V output out of spec
Quick Specifications
- Product Type
- Power Supply
- Power Factor Correction (PFC)
- Active
- Number of Fans
- 1
- Output Voltage
- 24 V DC 56 V DC
- Output Current
- 5.70 A
- Output Power
- 345 W 315 W 30 W
- Form Factor
- Compact
- Height
- 1.8"
