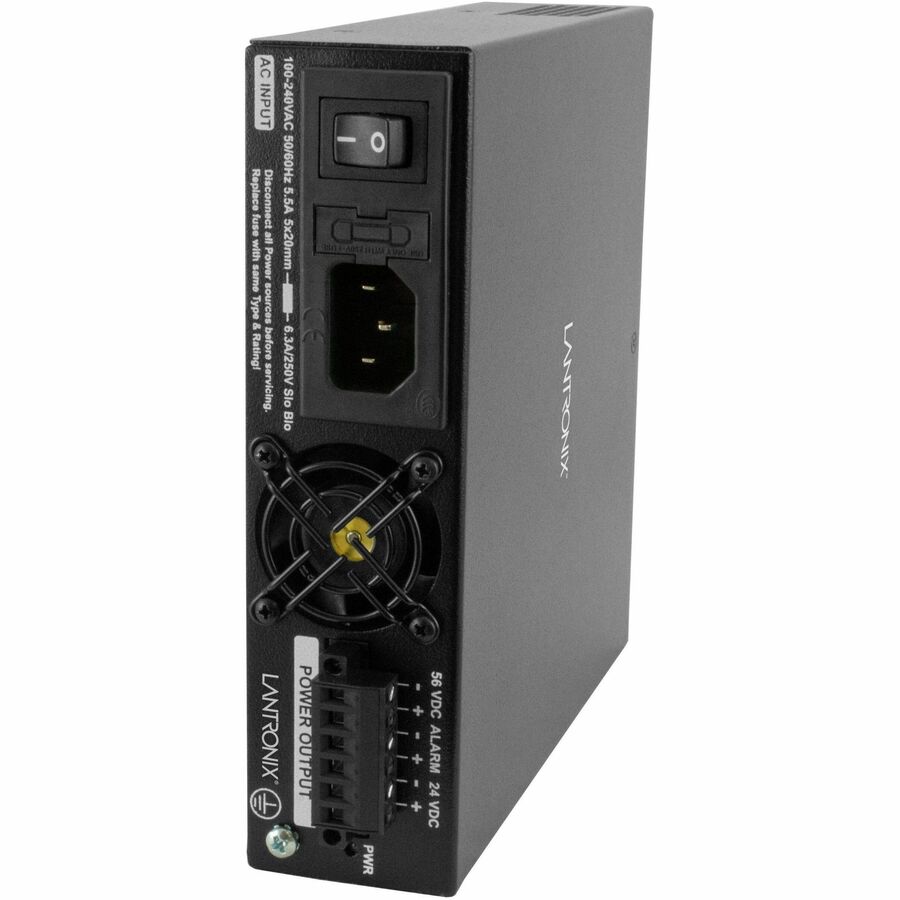

Stand-Alone Hardened Power Supply 345 Watt Isolated Power Supply with 56VDC and 24VDC Dual Output
Manufacturer: Lantronix, Inc
Mfr. Part: PS-DC-DUAL-5624T-NA
Hardened 345 Watt Isolated Power Supply with 56VDC and 24 VDC Dual Output
About This Product
Overview
This stand-alone power supply is designed to offer dual DC power output in extended temperature environments. It has a compact form factor and can be DIN rail mounted; 345 Watt Isolated Power Supply with 56VDC and 24VDC Dual Output; NDAA Compliant, TAA Compliant
- Compact Stand-Alone or DIN Rail form factor
- Wide 100 - 240VAC power input with externally accessible fuse
- Dual Output: 315W at 56VDC and 30W at 24VDC, Terminal Block Connectors
- Maximum output: 345 Watts
- Full compliance with IEEE 2250VDC
- PoE isolation requirements
- Active fan speed control based on temperature
- Front panel LED to indicate the status of power supply, fan faults and temperature
- 2-Pin alarm DC relay output with 5 event monitoring
Quick Specifications
- Product Line
- Isolated
- Product Type
- Power Supply
- Number of Fans
- 1
- MTBF
- 623377 Hour
- Input Voltage
- 120 V AC 230 V AC
- Output Voltage
- 56 V DC 24 V DC
- Output Current
- 5.70 A 1.25 A
- Output Power
- 345 W
