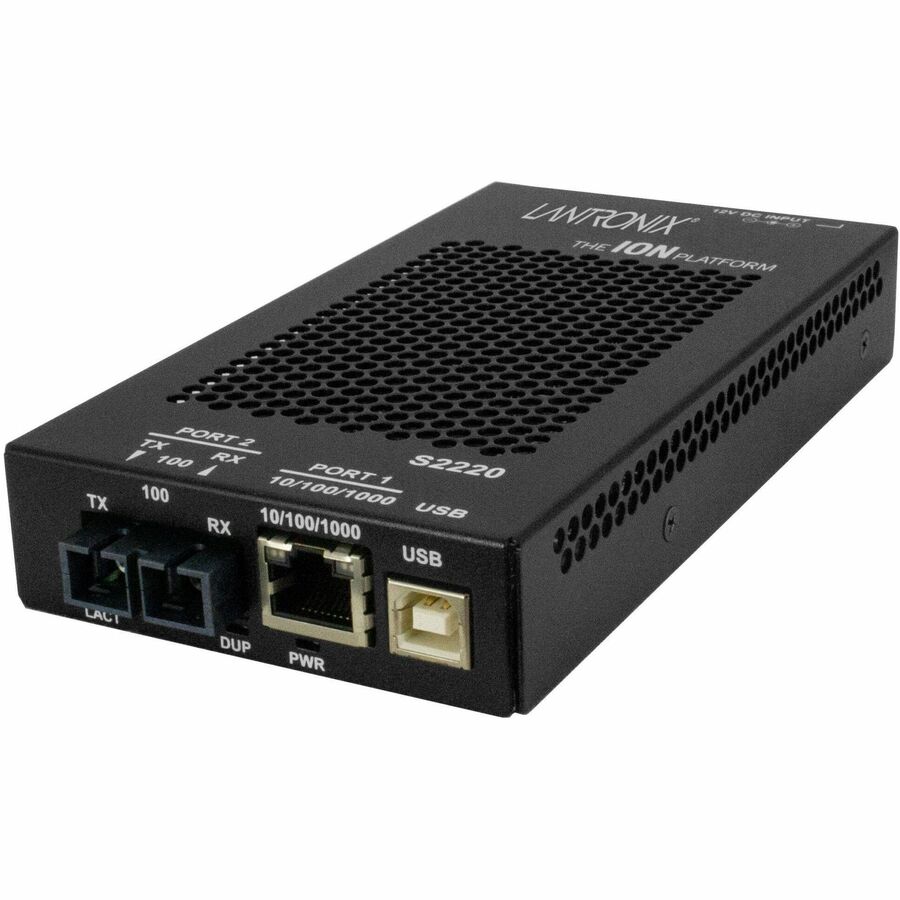

Transition Networks S2220-1014 Transceiver/Media Converter
1 x Network (RJ-45) - 1 x SC Ports - USB - Management Port - Single-mode - 1310 nm Fiber - Fast Ethernet, Gigabit Ethernet - 10/100/1000Base-T, 100Base-LX - 1000 Mbit/s - 10 km - Power Supply - Standalone, Wall Mountable, DIN Rail Mountable, Shelf Mount - TAA Compliant
About This Product
Overview
Stand-alone Fast Ethernet Remotely Managed NID
10/100/1000Base-T to 100Base-FX with OAM/IP-Based Management
The ION S2220 is a stand-alone managed Network Interface Device (NID) that provides an interface between 10/100/1000Base-T ports and 100Base-FX ports, allowing users to manage their links while integrating fiber optic cabling into 10/100/1000 copper environments. As a remotely managed device, the S2220 can be managed individually via an IP address or it can be managed in-band, over the fiber when linked to a C2220 card installed in a managed ION chassis. With advanced features like IEEE 802.3ah Link OAM, VLAN, QoS, SSH/SSL, jumbo frame support, and bandwidth allocation, the S2220 offers a variety of methods for the secure delivery of Ethernet services in business and mobile backhaul applications.
- MEF 9, 14 and 21 certified
- IEEE 802.3ah Link OAM
- 10K Jumbo Frame Support
- Two selectable Remote Management modes: IP-Based Remote Management | In-Band (remote device managed by local peer)
- Auto-MDI/MDIX
- Auto-Negotiation
- Pause
- Transparent Link Pass Through
- Far-End-Fault (FEF)
- Remote Loopback
Quick Specifications
- Product Line
- ION
- Product Series
- S2220
- Product Model
- S2220-1014
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- USB
- Yes
- Management Port
- Yes
