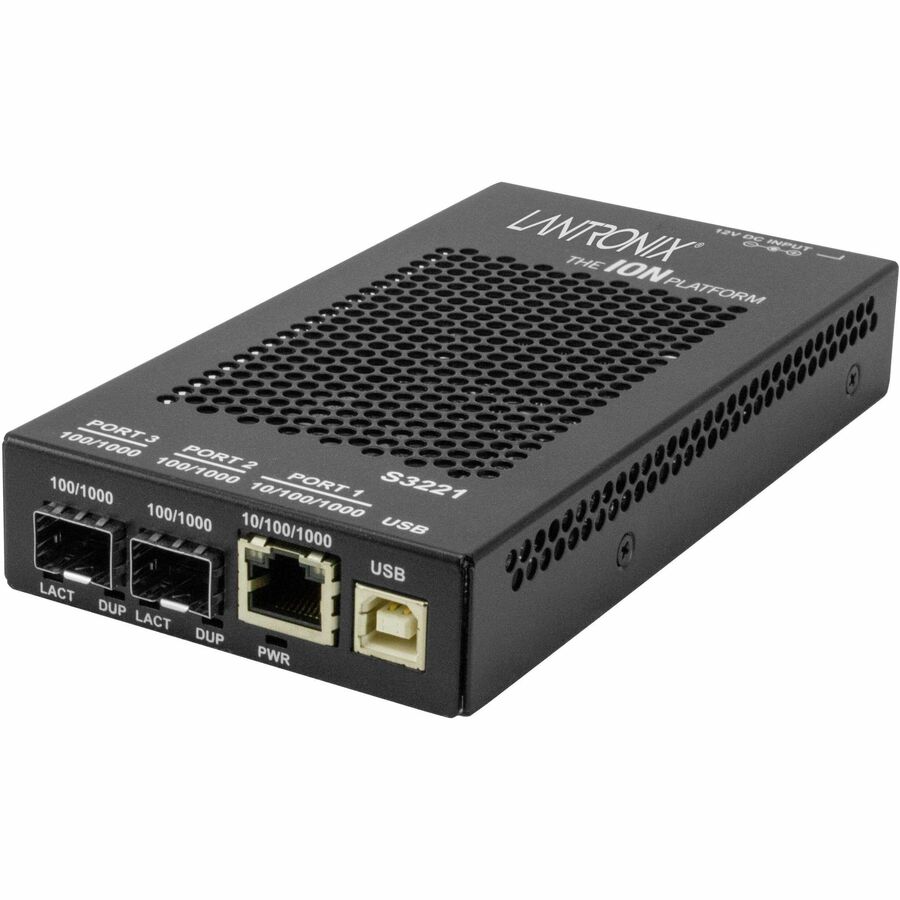

Transition Networks S3221-1040-T Transceiver/Media Converter
1 x Network (RJ-45) - USB - Gigabit Ethernet - 10/100/1000Base-T, 100/1000Base-X - 1000 Mbit/s - 0.10 km - 2 x Expansion Slots - SFP - 2 x SFP Slots - AC Adapter - Wall Mountable, DIN Rail Mountable, Shelf Mount, Standalone - TAA Compliant
About This Product
Overview
Stand-alone Gigabit Ethernet Remotely Managed NID
10/100/1000Base-T to 1000Base-X with OAM/IP-Based Management
The ION S3220 is a stand-alone managed Network Interface Device (NID) that provides an interface between 10/100/1000Base-TX ports and 1000Base-SX/LX ports, allowing users to manage their links while integrating fiber optic cabling into 10/100/1000 copper environments. As a remotely managed device, the S3220 can be managed individually via an IP address or it can be managed in-band, over the fiber when linked to a C3220 card installed in a managed ION chassis. With advanced features like IEEE 802.3ah Link OAM, VLAN, QoS, SSH/SSL, jumbo frame support, and bandwidth allocation, the S3220 offers a variety of methods for the secure delivery of mobile backhaul applications.
- MEF 9, 14 and 21 certified
- IEEE 802.3ah Link OAM
- 10K Jumbo Frame Support
- Two selectable Remote Management modes: IP-Based Remote Management | IP-Based Remote Management
- In-Band (remote device managed by local peer)
- Auto-MDI/MDIX
- Auto-Negotiation
- Pause
- Transparent Link Pass Through
- Far-End-Fault (FEF)
- Remote Loopback
- Field Upgradeable Firmware
Quick Specifications
- Product Series
- S3220
- Product Model
- S3221-1040-T
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 1
- Network (RJ-45)
- Yes
- USB
- Yes
- Number of Network (RJ-45) Ports
- 1
- Media Type Supported
- Twisted Pair Optical Fiber
