Transition Networks S6210-3040 Transceiver/Media Converter
100Base-X/OC-3 - 44.70 Mbit/s - 1 x Expansion Slots - SFP - 1 x SFP Slots - Power Supply - Wall Mountable, DIN Rail Mountable, Rack-mountable, Standalone, Shelf Mount - TAA Compliant
About This Product
Overview
Stand-alone DS3-T3/E3 Network Interface Device
DS3 - T3/E3 Coax over Fiber

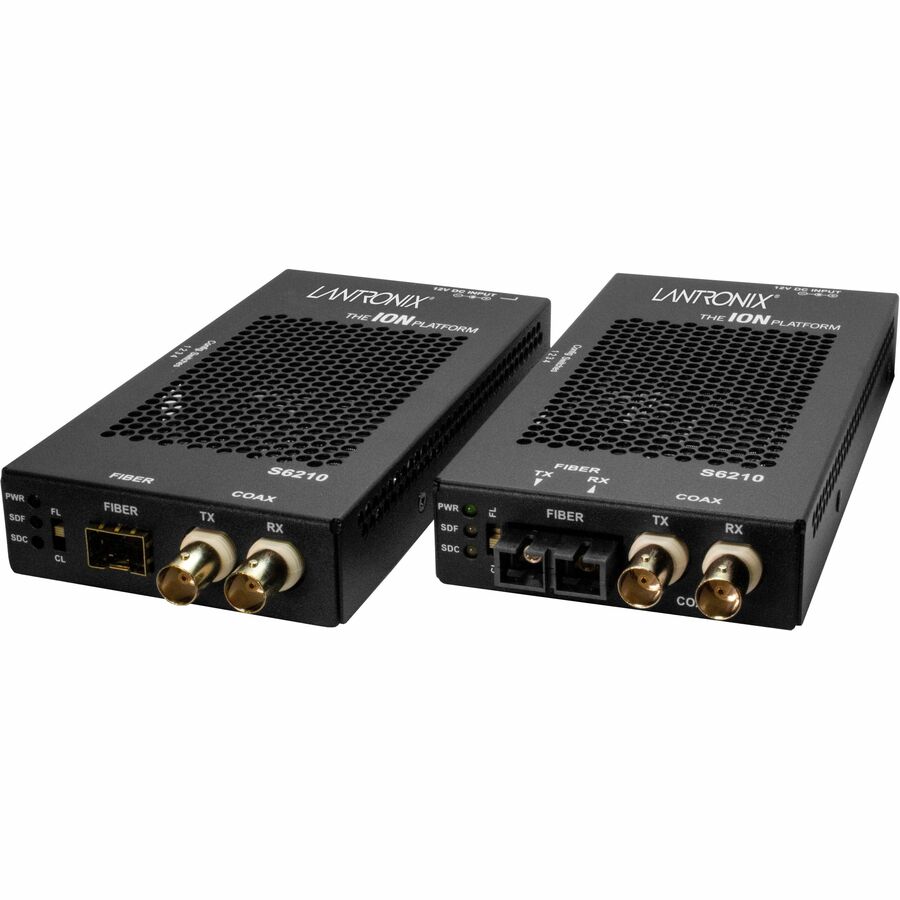

The ION S6210 is a managed stand-alone media converter that provides a solution for those users that need to extend DS3-T3/E3 connections over fiber. The S6210 is available in versions that support fixed fiber connectors as well as SFP fiber modules offering support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure.
The S6210 DS3-T3/E3 converters must be used in pairs. Management of the stand-alone converter is supported, in-band, over the fiber, when the remote S6210 is linked to a C6210 card installed in a managed ION chassis.
- AIS (Alarm Indication Signal)
- Coax Line Build Out
- Switch selectable for DS3/T3 or E3
- Remote firmware upgrade
- Loopback - Coax and Fiber
- LEDs for immediate visual status
- Supports dual or single fiber
- Supports multimode and single mode fiber at a variety of distances
- Supports CWDM SFPs
- SNMP management when used with ION chassis and management module
Quick Specifications
- Product Line
- ION
- Product Series
- S6210
- Product Model
- S6210-3040
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 2
- Media Type Supported
- Optical Fiber Coaxial
- Maximum Data Transfer Rate
- 44.70 Mbit/s
- Total Number of Expansion Slots
- 1
