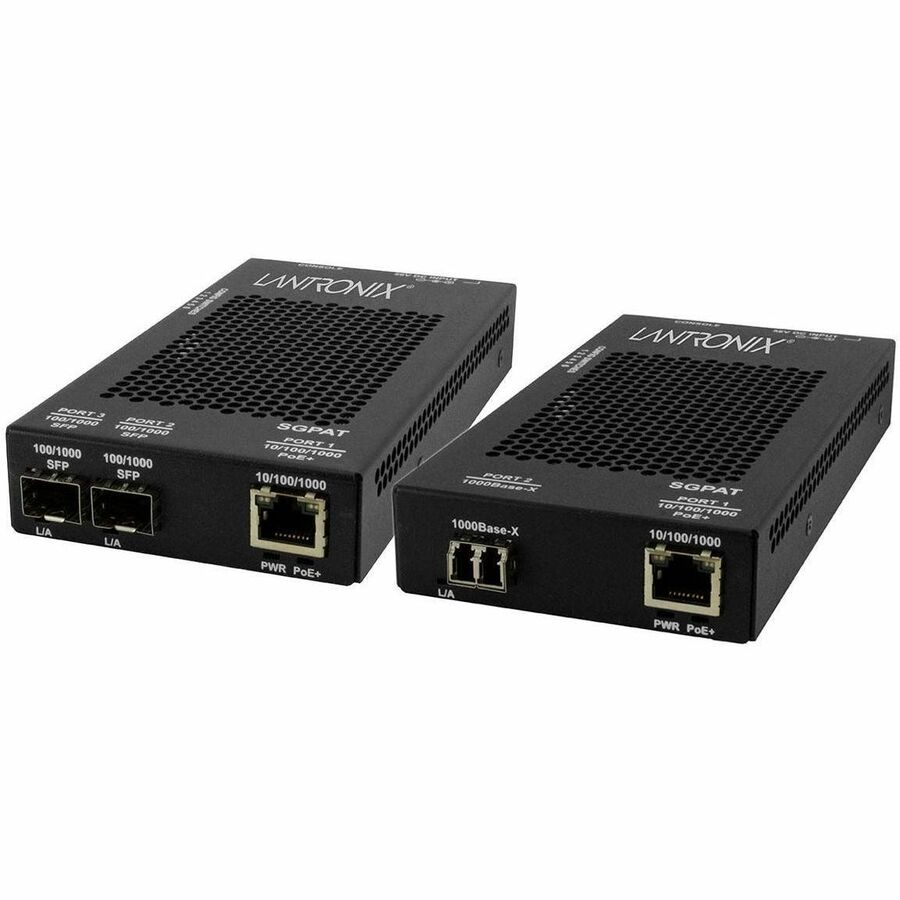

Stand-alone Fast & Gigabit Ethernet PoE / PoE+ Media Converter 10/100/1000Base-T PoE+ PSE to 1000Base-X

Overview

• Wall mount, DIN Rail, or table top
• External AC/DC power supply included
• 2-port 10/100/1000 copper to fiber media conversion with IEEE 802.3at PoE+ on the copper port
• Supports full 30 Watts of power to each twisted pair port
• Various fiber versions available supporting fixed SC, LC, and open SFP
• 3-port version offers 1 RJ-45 PoE+ port and 2 open SFP slots, device can be configured as a 3-port switch or as a 2-port media converter with redundant fiber links
• With redundant fiber enabled, supports a 50ms fail-over time
• 4-port version offers 2 RJ-45 PoE+ ports and 2 open SFP slots, device can be configured as a 4-port switch with or without redundant fiber or as two independent PoE+ media converters in one housing
• SFP slots can support 100Base-FX, 1000Base-X, or SGMII based MSA compliant SFP modules
• Supports Auto-Negotiation, Auto-MDI/MDIX, Active Link Pass Through ALPT, and Remote Fault Detection
• Jumbo frame support
• LEDs indicators for power status; per port link, duplex, and activity status; and PoE status
• Legacy PoE Detection
• Twisted pair ports support IEEE 802.3az Energy Efficient Ethernet for power saving
• Dip switch control of basic feature configuration
• RJ-45 serial port for Command Line Interface CLI of advanced port configuration 115200 baud
