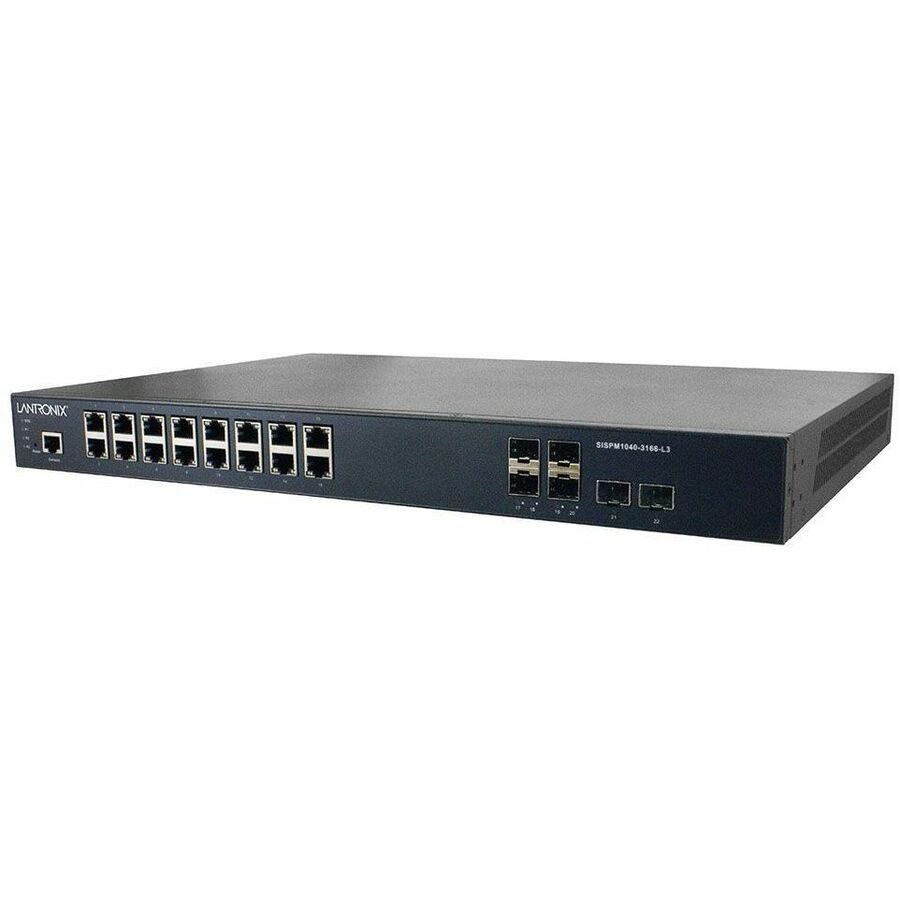

Lantronix SISPM1040-3000-L3 Layer 3 Switch
16 Ports - Manageable - 10 Gigabit Ethernet - 10GBase-X, 10/100/1000Base-TX, 100/1000Base-FX - 4 Layer Supported - Modular - 4 SFP Slots - 15 W Power Consumption - 250 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 5 Year Limited Warranty
About This Product
Overview
(16) 10/100/1000Base-T PoE+ Ports + (4) 100/1000Base-X SFP Slots + (2) 1G/10GBase-X SFP+ Slots
(24) 10/100/1000Base-T PoE+ Ports + (4) 100/1000Base-X SFP Slots + (4) 1G/10GBase-X SFP+ Slots
The SISPM1040-3000-L3 Series managed Layer 3 (L3) hardened Gigabit Ethernet PoE switches offer powerfulLayer 2 and Layer 3 features and performance required to meet the demands of Smart City and Utility,Transportation, Security and Surveillance applications where performance and reliability across a wide range oftemperatures is required. The SISPM1040-3000-L3 Series are designed to support current and future Internet ofThings (IoT) applications with their non-blocking / wirespeed performance, wide operating temperature range of-40°C to 75°C for outdoor and indoor environments.
Device management is made simple with Lantronix ConsoleFlow™. The ConsoleFlow Cloud device managerprovides cloud-based control of the Lantronix SISPM1040-3000-L3 Series network switches. ConsoleFlowCloud provides a single pane of glass to securely deploy, monitor and manage Lantronix network switches andconnected IT equipment. ConsoleFlow Cloud features True Zero-Touch automation, simplifying onboardinglogistics and provisioning new devices while eliminating remote or on-site visits and reducing operational costs.In addition, the native mobile apps for iOS® or Android™ platforms provide users the freedom to monitor andremotely connect to any device while on the go.
- IPv4/IPv6 Layer 3 Static Routing
- RIP v1/v2, OSPF v2/v3 Dynamic Routing
- Supports Jumbo Frame up to 10K bytes
- Authentication - RADIUS, TACACS+
- SSH v1/v2
- DHCP Relay, DHCP Snooping, DHCP Server, DHCP Client
- L2/L3/L4 ACLs Support MAC, VLAN ID, or IP address, protocol, per port
- LACP (Link Aggregation Control Protocol)
- LLDP (Link Layer Discovery Protocol)/CDP Aware
- ITU-T G.8031 Ethernet Linear Protection Switching (ELPS)
- ITU-T G.8032 Ethernet Ring Protection Switching (ERPS)
- Rapid Ring for fast recovery
- IEEE 802.3az Energy Efficiency
- IP Source Guard, Port Security
- Storm Control
- Port Mirroring
- SNMP Traps/Syslog/SMTP
Quick Specifications
- Product Series
- SISPM1040-3000-L3
- Product Type
- Layer 3 Switch
- Total Number of Network Ports
- 16
- Network (RJ-45)
- Yes
- Modular
- Yes
- Stack Port
- No
- Port/Expansion Slot Details
- 16 x Gigabit Ethernet Network PoE+ 4 x Gigabit Ethernet SFP 2 x 10 Gigabit Ethernet SFP+
- Media Type Supported
- Twisted Pair Optical Fiber
