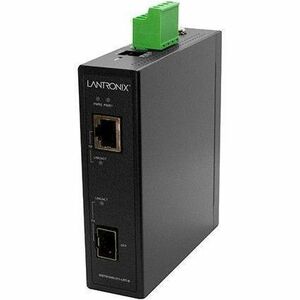

Transition Networks SISTG1014-211-LRT-B Transceiver/Media Converter
Manufacturer: Lantronix, Inc
Mfr. Part: SISTG1040-211-LRT-B
1 x Network (RJ-45) - Gigabit Ethernet - 1000Base-X, 10/100/1000Base-T - 1000 Mbit/s - 0.10 km - 1 x Expansion Slots - SFP - 1 x SFP Slots - DC - Rail-mountable - TAA Compliant
About This Product
Overview
The SISTG10xx-211-LRT-B Series is a new generation of unmanaged hardened Gigabit Ethernet media converter. The converter can provide multimode or single mode fiber connections with fixed SC connectors for extending the Ethernet service distance over fiber. The converter also has a SFP version that provides the ultimate flexibility to choose the appropriate SFP module to match your communication and distance needs.
It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C. Transition Networks' hardened switches are certified with UL Class 1 Division 2 to operate reliably in hazardous locations such as Oil & Gas, manufacturing, and the chemical industry.
It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C. Transition Networks' hardened switches are certified with UL Class 1 Division 2 to operate reliably in hazardous locations such as Oil & Gas, manufacturing, and the chemical industry.
- Auto-Negotiation
- Auto-MDI/MDIX
- Link Pass Through
- Extended operating temperature (-40°C to 75°C)
- Dual, Redundant, 12-48 VDC Power Inputs
- Reverse Polarity Power Input Protection
- Overload Current Protection
- DIN Rail Mounting Brackets Included
- Class 1, Div 2 Certified
- Jumbo Frame: 9K bytes
Quick Specifications
- Product Series
- SISTG10xx-211-LRT-B
- Product Model
- SISTG1014-211-LRT-B
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 1
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 1
- Media Type Supported
- Twisted Pair Optical Fiber
- Maximum Data Transfer Rate
- 1000 Mbit/s
