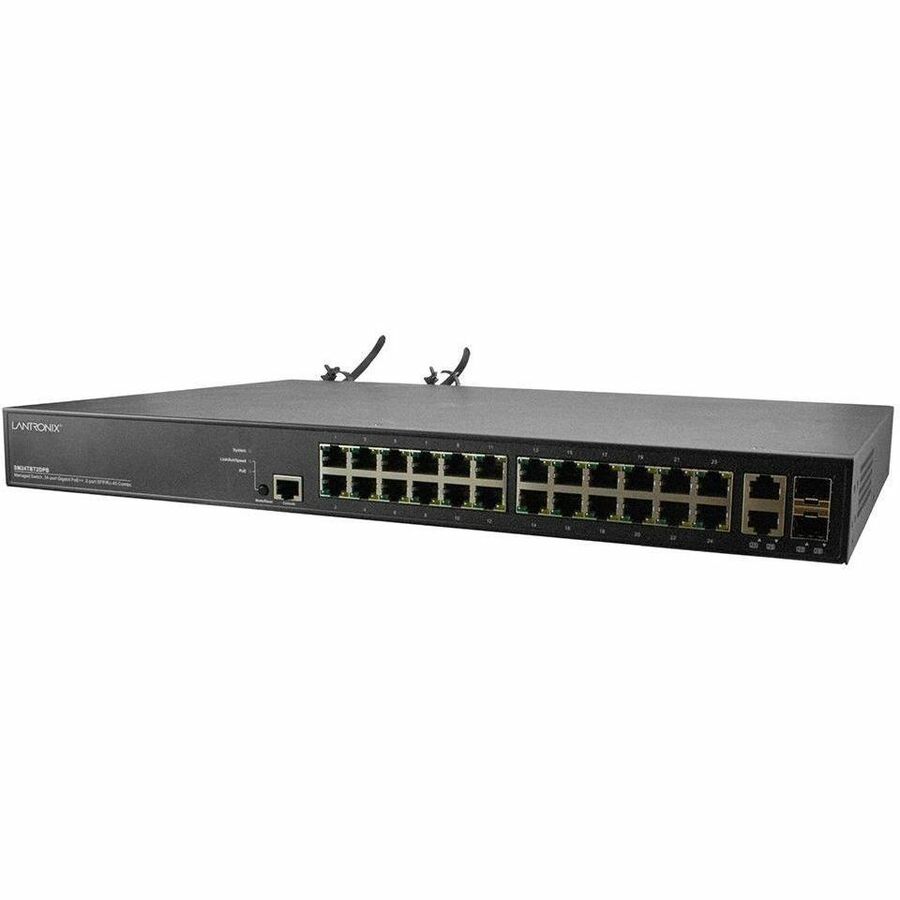

Lantronix SM24TBT2DPB Ethernet Switch
26 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 4 Layer Supported - Modular - 2 SFP Slots - 52 W Power Consumption - Twisted Pair, Optical Fiber - Rack-mountable - 5 Year Limited Warranty
About This Product
Overview
(24) 10/100/1000Base-T Ports + (2) 100/1000Base-X SFP/RJ-45 Combo Ports
This switch is a high performance Layer 2 managed switch with 52 Gbps switching capacity. Itprovides (24) 10/100/1000Mbps copper ports with IEEE 802.3bt PoE++ capability and (2) additional100/1000Mbps dual speed SFP/RJ-45 combo ports. The SM24TBT2DPB complies with the latestIEEE 802.3bt PoE++ standard and supplies up to 90 Watts per port. It can provide full PoE++ outputon all 24 ports when equipped with the dual hot-swappable PS-ACDC-1200 power supplies. TheSM24TBT2DPB can be powered by low-line and high-line AC or DC power and Digital Electricity*,making it ideal for use in a wide variety of building applications.
- Hot-swappable dual power supply modules
- Supports IPv4/IPv6 dual protocol stack
- Supports Jumbo Frame up to 9K bytes
- Authentication - RADIUS, TACACS+
- Security - Supports SSH v1/SSH v2/SSL
- Port based or tagged (IEEE 802.1Q) VLAN, MAC based, Management VLAN and Private VLAN Edge
- DHCP Relay, DHCP Server
- L2/L3/L4 ACLs Support MAC ACL, IP standard/extended ACL
- LLDP (Link Layer Discovery Protocol)
- IEEE 802.3az Energy Efficiency
- IP Source Guard, Port Security
Quick Specifications
- Product Series
- SM24TBT2DPB
- Product Type
- Ethernet Switch
- Features
- Hot-swappable
- Total Number of Network Ports
- 26
- Network (RJ-45)
- Yes
- Modular
- Yes
- Stack Port
- No
- Port/Expansion Slot Details
- 24 x Gigabit Ethernet Network PoE++ 2 x Gigabit Ethernet Combo (Ethernet/SFP)
