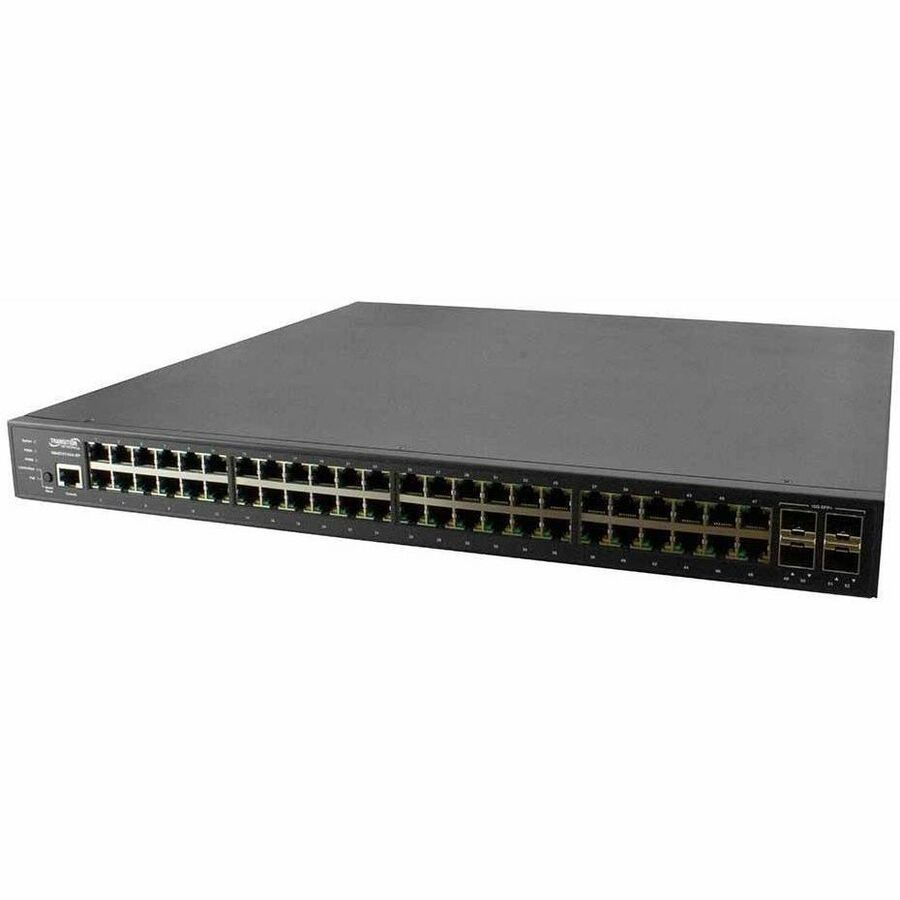

Managed Gigabit Ethernet PoE+ Switch 48 10/100/1000Base-T Ports + 4 1G/10GBase-X SFP+ Ports

Overview

• Supports Jumbo Frame up to 10240 bytes
• Authentication – RADIUS IEEE 802.1X, TACACS+
• Security – Support SSH/SSL
• Port security: MAC addresses to ports
• Port based or tagged (IEEE 802.1Q) VLAN, MAC based VLAN, Management VLAN and Private VLAN Edge
• DHCP Server, Client, Relay
• IEEE 1588v2 PTP (TC)
• ACLs Support for up to 512 entries, drop or rate limitation based on source and destination MAC, VLAN ID or IP address, protocol, port, DSCP/IP precedence, TCP/IP source and destination ports, IEEE 802.1p priority, Ethernet Type / IGMP packets, TCP flag
• LLDP (Link Layer Discovery Protocol)
• IEEE 802.3az Energy Efficiency
• Web Management, SNMP V1/V2c/V3, Telnet, CLI
• Supports IEEE 802.3ad port trunk with link aggregation control protocol (LACP). Supports up to 26 groups with up to (16) ports per group.
• Supports IGMP Snooping V1/V2/V3, up to 1024 multicast groups, GVRP, IGMP Proxy, IGMP Querier
• MLD snooping V1/V2: deliver IPv6 multicast packages only to the required receivers
• Supports 8 hardware queues, Strict priority and WRR. Queue assignment based on DSCP and IEEE 802.1p CoS; IPv4/IPv6 precedence/ Type of Service / DiffServ / classification and remarking ACLs; rate limiting, ingress policer, egress shaping and rate control
• IEEE 802.1s MSTP, IEEE 802.1w RSTP and IEEE 802.1D STP Compliant
• Firmware Update, configure backup/restore through web GUI and TFTP
• Supports IPv4/IPv6 Layer 3 static routing
• ITU-T G.8031, G8032, loop detection
