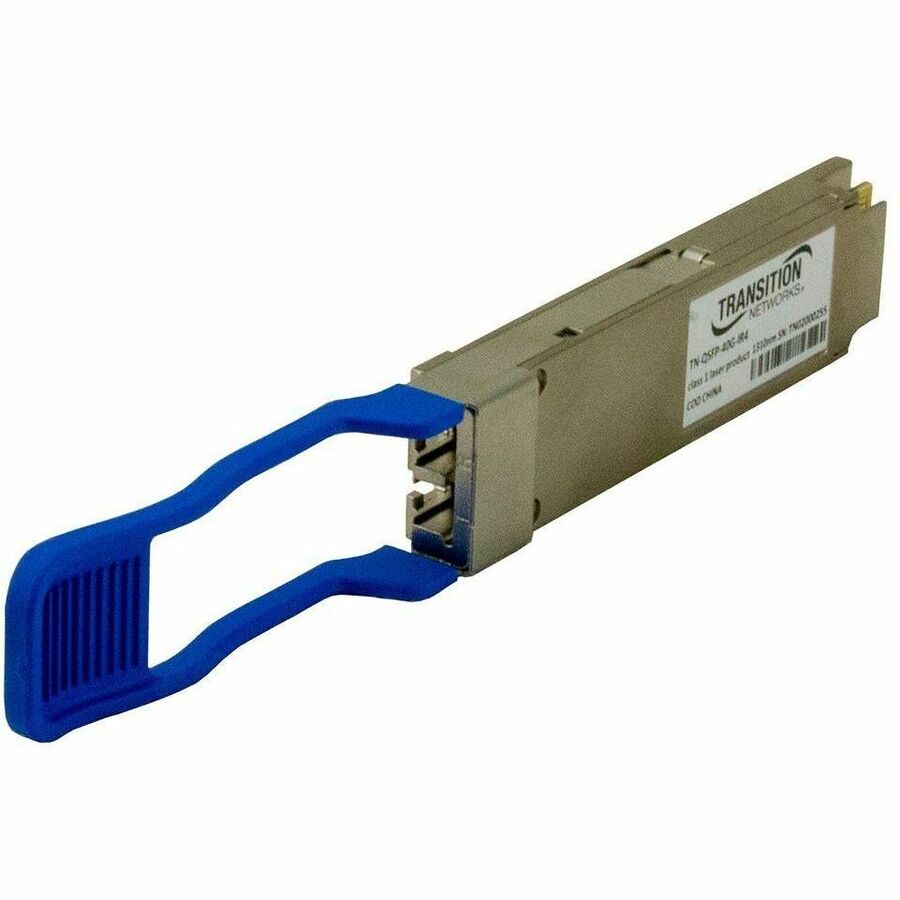

Lantronix TN-QSFP-40G Cisco QSFP+ Module
Manufacturer: Lantronix, Inc
Mfr. Part: TN-QSFP-40G-IR4
For Optical Network, Data Networking - 1 x LC Duplex 40GBase-IR4 Network - Optical Fiber - Single-mode - 40 Gigabit Ethernet - 40GBase-IR42 km Maximum Distance
About This Product
Overview
Lantronix TN-QSFP-40G series 40G QSFP+ optical transceivers are designed to install in any QSFP+ port allowing for 40GBase-X interfaces to the network through the QSFP+ connector. The TN-QSFP-40G transceivers are Cisco Compliant and are designed for bi-directional serial-optical data communication such as 40G Ethernet
Applications include: 40G Ethernet, 10G Ethernet, and Data Center Aggregation Connection.
- High capacity: up to 44.4 Gbps per module
- Compliant with SFF 8436 QSFP+ MSA
- Single +3.3 V Power Supply
- RoHS Compliant
- Digital Diagnostic Monitoring
- Low Power Dissipation : SR4 <1.5 Watts, all other modules <3.5w
- 40GBase-SR4: 4 lanes, up to 11.1Gbps per lane, Standard MPO connector
- 40GBase-LR4 & 40GBase-LR4-3: 4 wavelength CWDM Mux/Demux design, up to 11.1Gbps per wavelength, Duplex LC connector
- 40GBase-SR-BD: two transmit/receive channels, 20Gbps each channel, 850 - 900nm wavelength range, Duplex LC connector
- 40GBase-IR4: 4 wavelength CWDM Mux/Demux design, up to 11.1Gbps per wavelength, Duplex LC connector
Quick Specifications
- Product Series
- TN-QSFP-40G
- Product Type
- QSFP+
- Application/Usage
- Optical Network Data Networking
- Total Number of Ports
- 1
- Connector Type
- LC
- Interfaces/Ports Details
- 1 x LC Duplex 40GBase-IR4 Network
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Single-mode
