C2G HDBaseT Dual 4K HDMI Extender + USB C, 3.5mm and USB B to A over Cat - HDMI Wall Plate to Receiver Box - 4K 60Hz

Manufacturer: Legrand Group
Mfr. Part: C2G31020

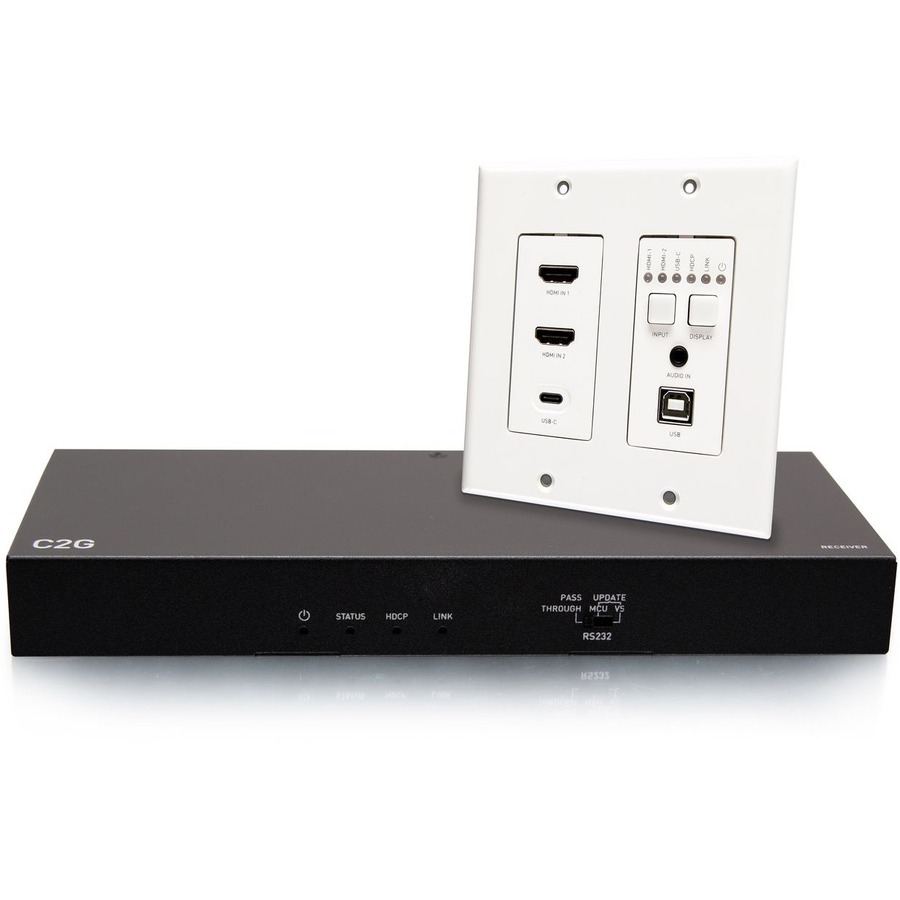

C2G Dual 4K HDMI® HDBaseT + USB-C®, 3.5mm, and USB-B to A over Cat Extender Wall Plate Transmitter to Audio De-Embedding Box Receiver - 4K 60Hz

C2G HDBaseT Dual 4K HDMI Extender + USB C, 3.5mm and USB B to A over Cat - HDMI Wall Plate to Receiver Box - 4K 60Hz

About This Product

Overview

The Dual 4K HDMI HDBaseT + USB-C, 3.5mm, and USB-B to A over Cat Extender Wall Plate Transmitter to Audio De-Embedding Box Receiver - 4K 60Hz allows HDMI or USB-C audio/video sources to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where USB must be extended alongside HDMI video and audio to interactive whiteboards and displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard HDMI cabling. This HDMI HDBaseT receiver is HDCP 2.2 compliant, making sure that the connection between the source and display is secure. Automatic switching is supported, connecting to the last active source. Additional analog audio output pass-through allows for audio distribution. High-speed USB 2.0 pass through is supported over HDBaseT up to 230ft for KVM control of devices such as USB cameras, keyboards, mice, etc. With PoH (Power Over HDBaseT) support, the receiver can send power to the transmitter, so no additional power adapter is required, allowing for greater flexibility in installations. Advanced users can control the transmitter via the RS232 port on the receiver. Note: Ensure a solid reliable connection between the 4K HDMI HDBaseT Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors.

  • Extend 4K at 60Hz (4:2:0) up to 130ft and 1080p at 60Hz up to 230ft with Cat 6a cable
  • Extend 4K at 60Hz (4:2:0) up to 115ft and 1080p at 60Hz up to 200ft with Cat 5e/6 cable
  • HDCP 2.2 compliant, to create a secure connection between the source and display
  • Additional analog audio input pass-through allows for audio distribution to the receiver side
  • The Transmitter supports automatic switching, following the last-in-first-out rule
  • The transmitter supports firmware upgrade and device control via the Micro USB port
  • Supports USB 2.0 pass through over HDBT up to 230ft, connecting up to 4 USB devices to the receiver
  • Analog audio output pass-through and analog audio de-embedding of HDMI output allows for audio distribution

Quick Specifications

Product Type
Video Extender Transmitter/Receiver
Connectivity Technology
Wired
Number of Input Devices Supported
2
Number of Output Devices Supported
1
Maximum Operating Distance
230 ft
HDBase-T
Yes
Graphics Modes
4K 2K
Supported Video Modes
1080p
