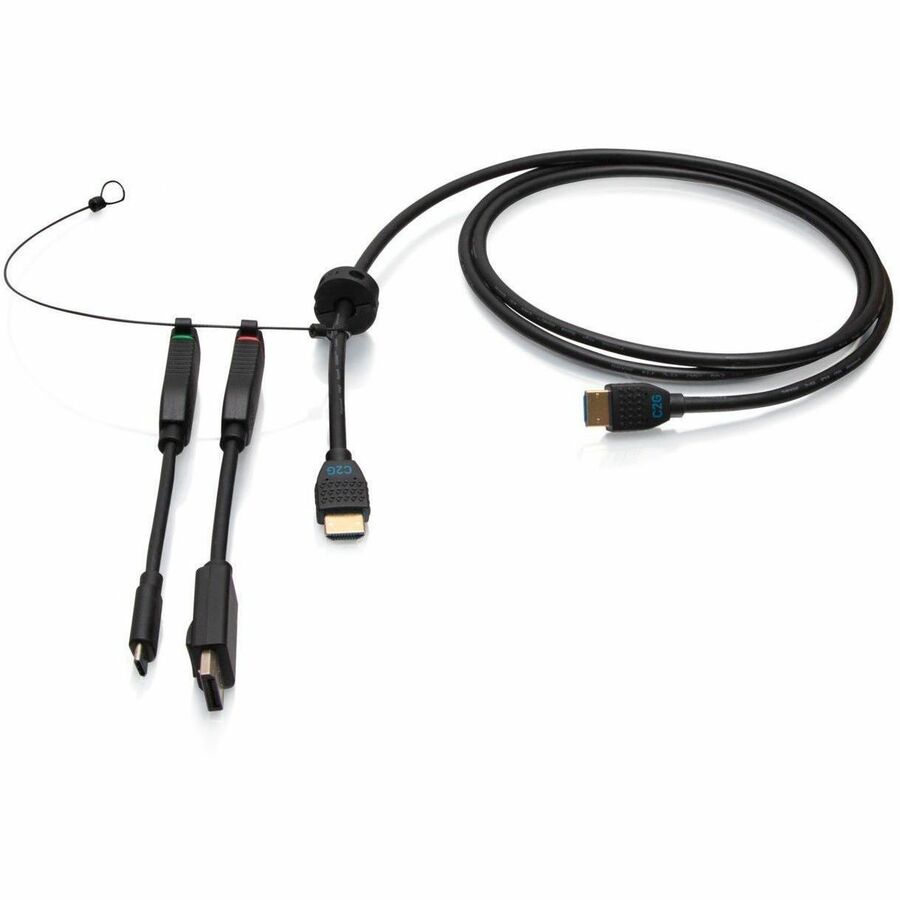

C2G 6ft (1.8m) 4K HDMI® Premium Cable and Universal Dongle Adapter Ring with Color Coded DisplayPort™ and USB-C® (without Pull Tab)

Manufacturer: Legrand Group
Mfr. Part: C2G4200587

Black

C2G 6ft (1.8m) 4K HDMI® Premium Cable and Universal Dongle Adapter Ring with Color Coded DisplayPort™ and USB-C® (without Pull Tab)

About This Product

Overview

The C2G Universal 4K HDMI® Dongle Adapter Ring with a 6ft (1.8m) Premium HDMI Cable ensures seamless connectivity for any device in conference rooms, classrooms, lecture halls, or huddle spaces. Designed for versatility, it includes color-coded adapters for DisplayPort, and USB-C, making it easy to identify and connect the right device without delay. The dongle-style adapters offer flexible positioning-perfect for thinner laptops and tablets-eliminating the awkward strain and alignment issues of rigid connectors. The included C2G Performance Series HDMI cable comes pre-mounted, so you're ready to connect straight out of the box. Plus, the integrated sliding adapter ring and optional stopper keep your setup organized and reduce wear on the HDMI port. Simplify collaboration with one universal, professional-grade solution.

Additional Technical Specifications

HDMI Cable Specs

  • Supports HDMI Resolutions up to 4K 60Hz, 4:4:4, 18Gbps
  • Jacket Color: Black, PVC Molding

    • Dongle Adapter Specs

    Signal Specifications

  • USB Type-C to HDMI Dongle: 100% Functional Test at 4K/60Hz/4:4:4 Resolution with Standard AV Test Equipment
  • DisplayPort to HDMI Dongle: 100% Functional Test at 4K/30Hz Resolution with Standard AV Test Equipment
  • Mini DisplayPort to HDMI Dongle: 100% Functional Test at 4K/30Hz Resolution with Standard AV Test Equipment

    • Electrical Specifications

  • Rating: Temp 80°C; Voltage 30V
  • Conductor Resistance: At 20°C Max 32AWG: mDP/DP: 588.85 OHMS/KM; USB-C: 588 OHMS/KM; 24AWG: 86 OHMS/KM
  • Insulation Resistance: mDP/DP: 10M OHMS/KM Min at 20°C DC 500V
  • Insulation Resistance: USB-C: PP/HD-PE DC 500V 100M OHMS/KM Min at 20°C
  • Dielectric Strength: AC 500V/1 Minute No Breakdown

    • Physical Specifications

  • Operating Temperature: 0°C - 40°C (0% - 90%RH)
  • Storage Temperature: -10°C - 60°C (0% - 90%RH)
  • mDP/DP Minimum Bend Radius: R52mm
  • USB-C Minimum Bend Radius: R45mm
  • Cables Jacket Rating: VW-1
  • Tensile Strength: Unaged: 1500PSI Min, Aged: 70% Min

    • Physical Characteristics

  • HDMI Female: Solder Type, Contacts: Brass, Gold Flash, Housing: LCP, Black with PCB, Shell: SPCC, Gold Plated
  • USB Type-C Male (Green Band): Solder Type, Contacts: Brass, Gold Flash, Housing: LCP, Black, Shell: Gold Plated
  • DisplayPort Male (Red Band): Solder Type, Contacts: Gold Flash, Housing: LCP Black, Shell: Gold Plated (with Latches)
  • Mini DisplayPort Male (Yellow Band): Solder Type, Contacts: Gold Flash, Housing: LCP Black, Shell: Gold Plated
  • All Hoods: Molded Black PVC
  • PC Eyelet: 17.8x4.7x2.6mm, Black, Material: PC
  • Pull Tab: 80x25x2mm, Material: Polyester, Black Background, White Text, with Black Eyelet
  • Universal Mounting Bracket: 85x65x1.2mm, Material: C.R.S. Rigidity: 1/4H, Color: Black
  • Product is CE marked and conforms to 2011/65/EU ROHS 2
    • Adapters support up to a 4K video resolution, so meeting attendees will be able to see the displayed content for improved comprehension and detailed decision making
    • Dongle style adapter, allowing for more flexibility when connecting to a laptop or tablet
    • Adapters are color coded, so no more frustration trying to find the adapter that you typically use for your laptop
    • Backed by a Lifetime Warranty for peace of mind

    Quick Specifications

    Product Type
    Connector Adapter Kit
    Product Color
    Black
    Color Family
    Black
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS) 2
    Country of Origin
    China
    Limited Warranty
    Lifetime
