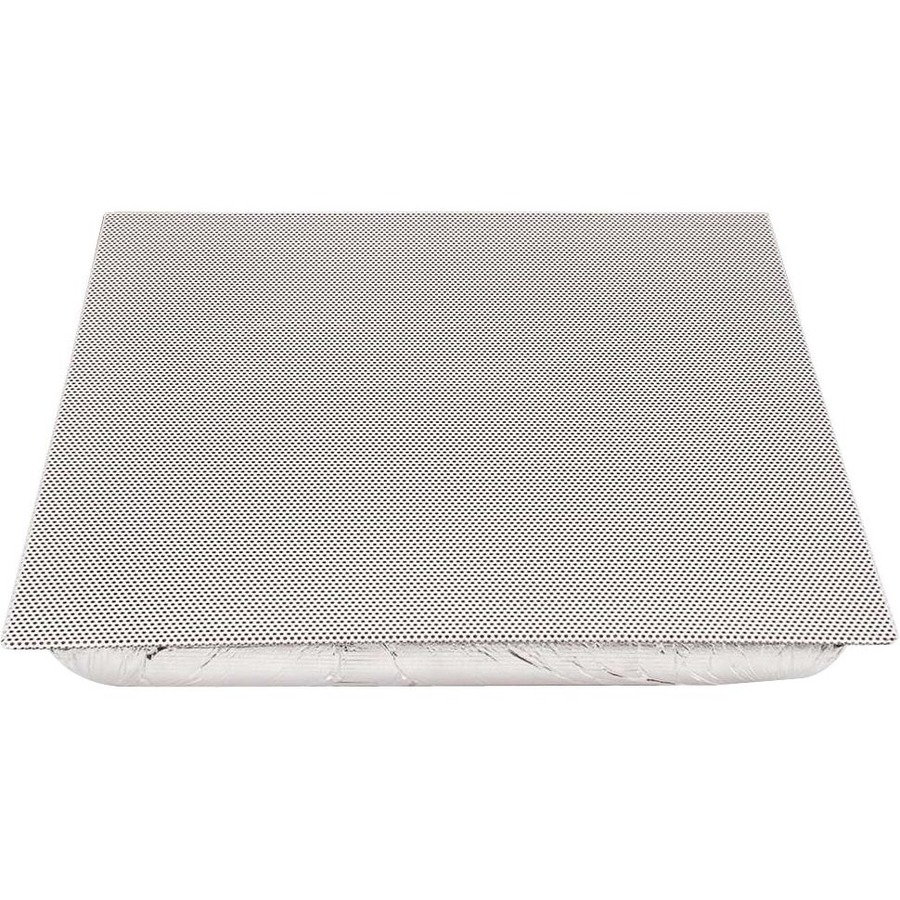

Legrand Ceiling Mountable Speaker - 12 W RMS - White
15 W (PMPO) Woofer Tweeter Midrange - 65 Hz to 17 kHz - 8 Ohm

About This Product
Overview
The Plenum-Rated 2x2 Drop In Ceiling Speaker is specifically designed for use in K-12 classrooms to deliver high quality audio from multimedia presentations, video clips, movies and other curriculum throughout the classroom. This speaker is designed to mount in the drop-ceiling frame that is often present in classrooms. Available in an industry standard 70 volt version with a 25 volt tap, this speaker ensures long life and quality sound. The Plenum-Rated 2x2 Drop In Ceiling Speaker has 0.5, 1.0, 2.0 and 4.0 watt taps to integrate seamlessly with a 70 or 25 volt amplifier to provide a complete classroom sound system. Additionally, the speakers can be combined with the A/V controller and RapidRun® for a complete connected classroom. This ceiling mount speaker provides a clean, unobtrusive look while dispersing sound down to students at 100 degrees for full classroom coverage.
Features and Benefits
- 8 inch outer diameter dual cone speaker with 100° coverage angle
- 5 oz. magnet with a 5W-25/70V transformer
- Plenum rated enclosure
- Seismic tie-off points
- 8 Ohm impedance extracts maximum power so you will get more output from your speakers
- Hear low subs and soaring vocals with a frequency range of sound from 65 Hz-17 kHz
- Handles up to 12 W of RMS power
- Delivers reliable sound with 17 kHz maximum frequency response
- 92 dB sensitivity for efficient conversion of power into sound to produce adequate audio output
- Ceiling Mountable form factor allows hassle-free and easy usage with increased efficiency
- 3.4" height for maximum coverage efficiency and feasible operation
- 20" width to ensure maximum usability and added power radiation feasibility
- 20.04" depth to allow maximum Speaker sound output efficiency
- 8" diameter for reliable frequency and sound output
Quick Specifications
- Product Type
- Speaker
- RMS Output Power
- 12 W
- PMPO Output Power
- 15 W
- Minimum Frequency Response
- 65 Hz
- Maximum Frequency Response
- 17 kHz
- Sensitivity
- 92 dB
- Impedance
- 8 Ohm
- Product Color
- White
