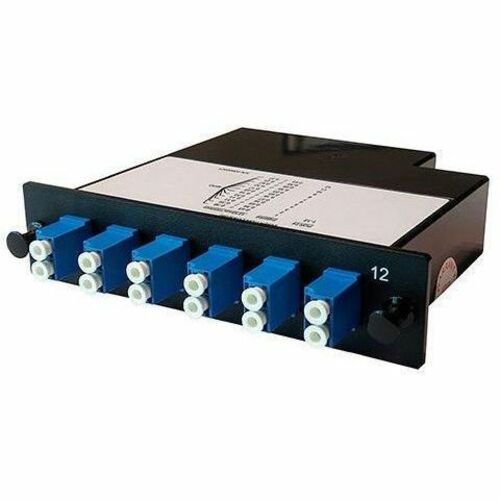

Ortronics Infinium Core Q-Series Fiber Cassette
Manufacturer: Legrand Group
Mfr. Part: LM2-LC12J
13 Port(s) - 6 x Duplex - Optical Fiber - Blue, Black - Wall Mountable, Rack-mountable
About This Product
Overview
Q-Series M2 Standard Density Cassettes are part of a complete fiber solution. When combined with matched Infinium Trunks and Infinium Patch Cable Assemblies the solution enables industry leading pre- terminated performance and universal polarity for simple, fast and consistent and simplified installation. Compatible with Q-Series Rack Mount or Wall Mount Fiber Enclosures.
- Low Loss System: When combined with Infinium Core Trunks and Infinium Core Patch Cords Total System Loss 2.5 dB Total Return Loss 19 dB
- Infinium Core: - Single-mode total channel connection loss: 2.1 dB - Single-mode total channel connection return loss: 49 dB - Multimode total channel connection loss: 2.5 dB - Multimode total channel connection return loss: 19 dB
- High Density: 12 or 24-fiber cassette compatible with Q-Series Enclosures
- Fiber Type: Supports either Single-mode OS2 or Multimode Infinium Core fiber
- Polarization: Universal
- LC adapter with Internal shutter: Provides eye safety by attenuating laser light when the mated connector is removed
- 100%automatic shutter mechanism requiring no operator handling of the shutter door
- Compatible with standard LC connectors
- It keeps adapter's interior clean from dust
- You can see the visible light through the adapter
Quick Specifications
- Product Line
- Infinium Core
- Product Series
- Q
- Product Type
- Fiber Cassette
- Media Type Supported
- Optical Fiber
- Total Number of Ports
- 13
- Number of LC Ports
- 6
- LC Port Type
- Duplex
- Color Family
- Dual Color
