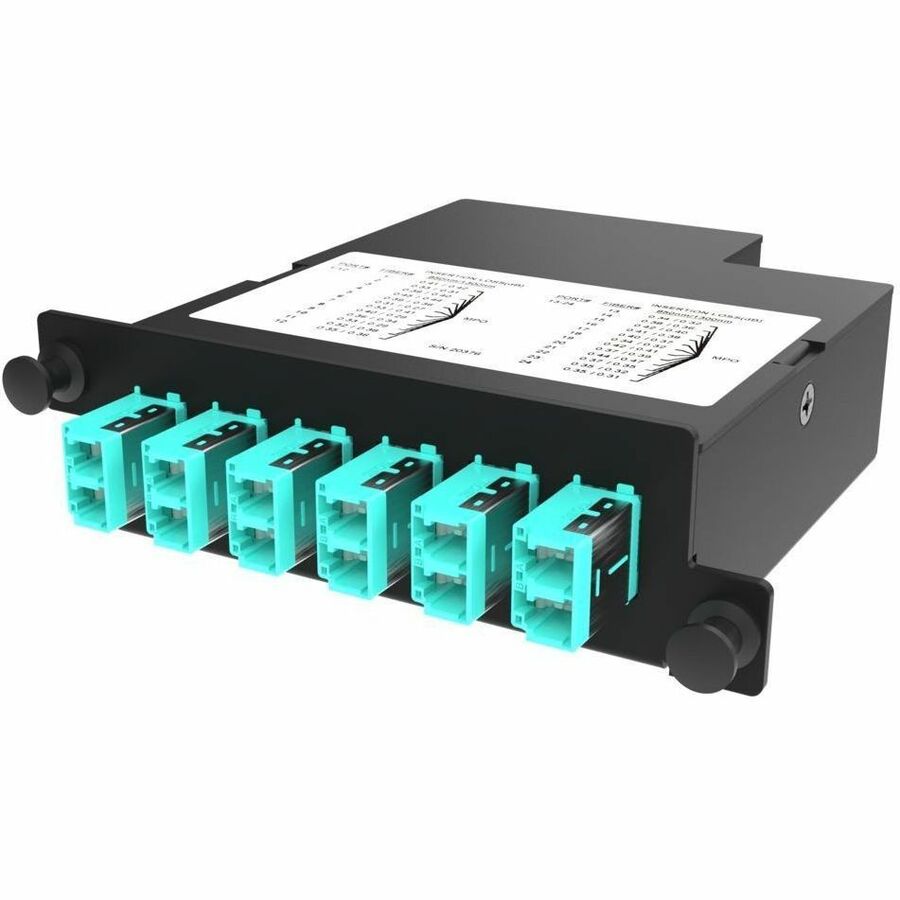

Ortronics Infinium Fiber Cassette
Manufacturer: Legrand Group
Mfr. Part: LM4-LC12H-1A4UN
13 Port(s) - 6 x Duplex - Optical Fiber - Aqua
About This Product
Overview
Lowest Total Channel Connection Loss
67% Improvement Over Standard Systems
Single-mode total channel connection loss: 0.75dB
Single-mode total channel connection return loss: 49dB
Multimode total channel connection loss 0.75dB
Multimode total channel connection return loss: 34dB
Future Proofing Open Path to 400G and Beyond Reducing or eliminating the need to replace link to meet demands of 400G and beyond Reduce need for fusion splicing to obtain low link loss Ability to add cross connections, signal drops, splitting, or switching components into the link for a particular transmission distance
- High Density: 12 or 24-fiber cassette compatible with Infinium HD M4 Enclosures
- Versatile Installation: Infinium Modular Panel enables mixed media installations
- Fiber Type: Supports either Single-mode OS2 or Multimode Infinium Ultra fiber
- Polarization: Universal
- LC adapter with internal shutter: Ensures eye safety by blocking laser light when the connector is removed. Automatic shutter requires no manual handling. Compatible with LC connectors, keeps the interior clean, and allows visible light to pass through.
- Infinium Ultra: Ultra Low Loss System with Infinium Ultra Trunks and Patch Cords: Single-mode channel loss: 1.2 dB, return loss: 49 dB. Multimode channel loss: 1.0 dB, return loss: 19 dB.
- Infinium Core: Low Loss System with Infinium Core Trunks and Patch Cords: Single-mode channel loss: 2.1 dB, return loss: 49 dB. Multimode channel loss: 2.5 dB, return loss: 19 dB.
Quick Specifications
- Product Line
- Infinium
- Product Type
- Fiber Cassette
- Media Type Supported
- Optical Fiber
- Total Number of Ports
- 13
- Number of LC Ports
- 6
- LC Port Type
- Duplex
- Color Family
- Green
- Product Color
- Aqua
