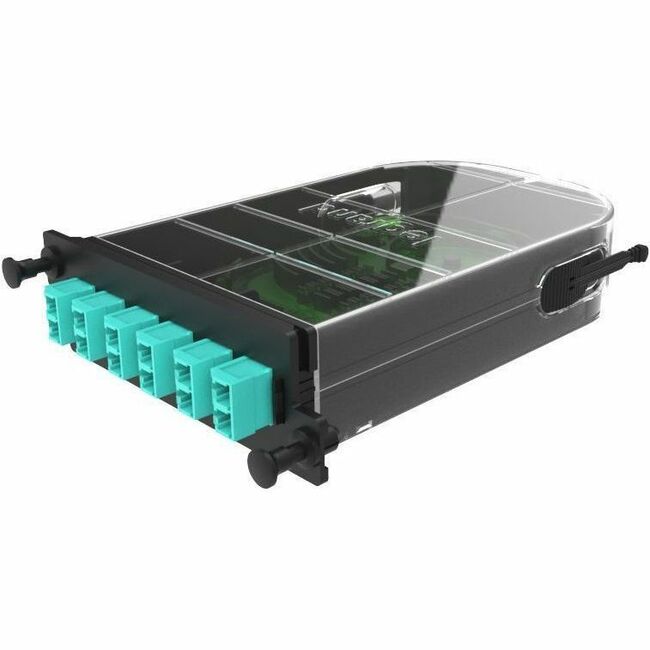

Ortronics Infinium Quantum M4 Splice Cassette, 12 Single Fiber, LC Duplex, OM4
12 Port(s) - 6 x Duplex - Optical Fiber - Aqua - Enclosure Mountable, Panel-mountable
About This Product
Overview
Infinium Quantum Splice Cassettes are available in the Infinium M4 footprint, enabling industry leading performance, fast field termination, and providing cable management within the housing. The Splice Cassettes are designed for use with Single-Mode (OS2) or Multimode (OM4/OM5) Fiber, Houses 12-24 fibers and are available in LC Duplex or LC Quad port configurations.
The 12 fiber cassettes and support fusion splicing of individual fibers, while the 24 fiber cassettes support fusion splicing of ribbon fibers. Heat shrinks, pigtail slack and cable slack are managed within the cassette-eliminating the need for individual splice trays or housings. The design of the cassettes allows easy mounting from either the front or the rear of an enclosure or panel, and individual fibers within the cassette may be accessed without disturbing the other fibers in the housing.
- Flexible Install: Mount from the front or the rear of an enclosure or panel
- Installation Convenience: Do all splicing and managing work outside the enclosure
- Clear Top: Enables fast and easy fault identification
- Compact: These Splice cassettes provide a very compact splicing solution
- Front or Rear Mounting: Simplify installation by mounting from the front or rear of the? enclosure panel
- Flexible Install: Mount from the front or rear of an enclosure or panel
- Patented Splice Management: Simplify Splicing and fiber management outside of the cassette with the removable fiber splice manager
Quick Specifications
- Product Line
- Infinium
- Product Type
- Fiber Cassette
- Media Type Supported
- Optical Fiber
- Total Number of Ports
- 12
- Number of LC Ports
- 6
- LC Port Type
- Duplex
- Color Family
- Green
- Product Color
- Aqua
