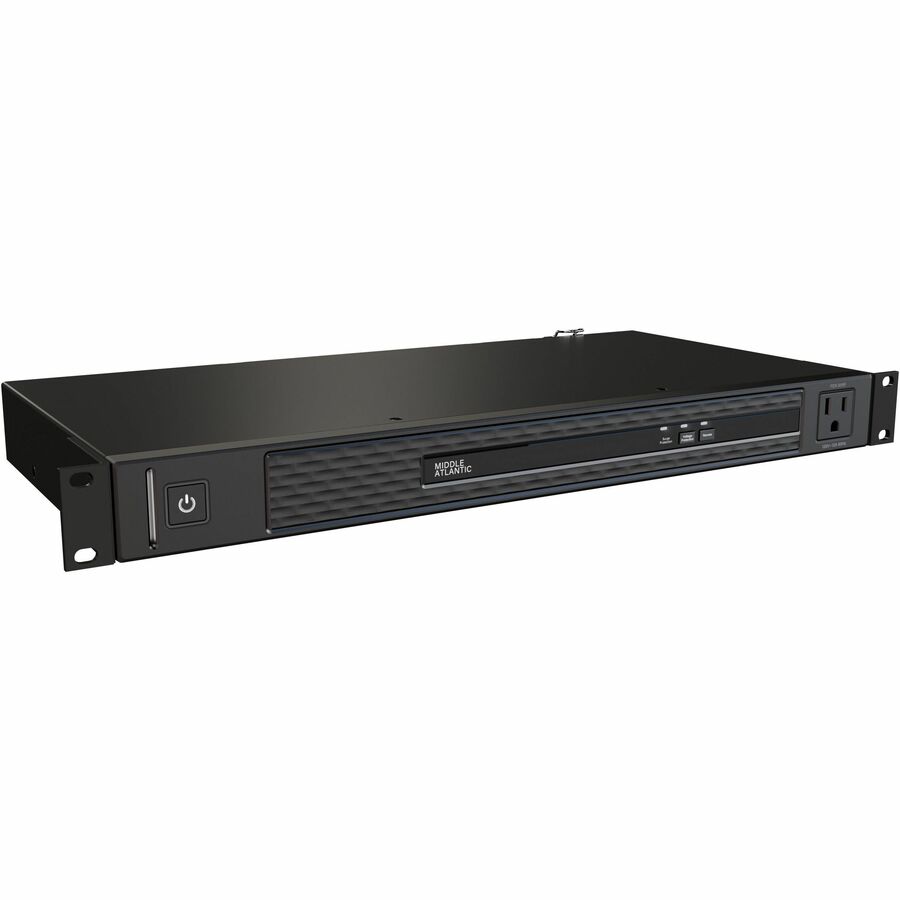

Middle Atlantic NEXSYS Rack Mount Power Distribution Unit - 15 Amp, 9 Outlet Rack Mount PDU

Manufacturer: Legrand Group
Mfr. Part: PDX-915R

NEMA 5-15P - 9 x NEMA 5-15R - 120 V AC - 1U - Rack-mountable - Rack

Middle Atlantic NEXSYS Rack Mount Power Distribution Unit - 15 Amp, 9 Outlet Rack Mount PDU

About This Product

Overview

The Middle Atlantic PDX-915R is a 15A NEXSYS PDU featuring (9) NEMA 5-15R outlets, making it ideal for 'behind-the-display' applications such as digital signage. Its compact design includes two mounting options-a clamp and L-brackets-for flexible installation. These mounting solutions can be easily attached to a Lever Lock plate for tool-free mounting inside a rack, kiosk, or in-wall box. The PDU offers multi-stage surge protection and visual indicators of surge status on the front and side. It also includes selectable on/off voltage protection from the dry contact port, which safeguards sensitive equipment from over/under voltage scenarios by automatically turning off the outlets during such events and restoring them once the voltage is within the acceptable range. For cleaner cable management, you can select your desired length of power cord, with a standard 9ft cord included. The outlets are oriented to prevent blocked outlets, allowing you to use both outlets even with DC transformers (wall warts).

  • Provide circuit protection and easy configuration for trouble-free access
  • NEMA 5-15R receptacle type to ensure maximum dependability and optimal performance
  • NEMA 5-15P plug/connector type for better, dependable connectivity and desired power output
  • 120 V AC input voltage for maximum feasibility and added productivity
  • 120 V AC output voltage for better reliance and maximum usability

Quick Specifications

Product Line
NEXSYS
Product Model
PDX-915R
Product Type
PDU
Plug/Connector Type
NEMA 5-15P
Receptacle Type
NEMA 5-15R
Receptacle Detail
9 x NEMA 5-15R
Protection Type
Surge Protection
Input Voltage
120 V AC
