Chief Fit Large Fixed Display Wall Mount - For Displays 43-86" - Black
Manufacturer: Legrand Group
Mfr. Part: RLF3
Height Adjustable - 43" to 86" Screen Support - 200 lb Load Capacity - 960 x 450 VESA Standard
About This Product
Overview

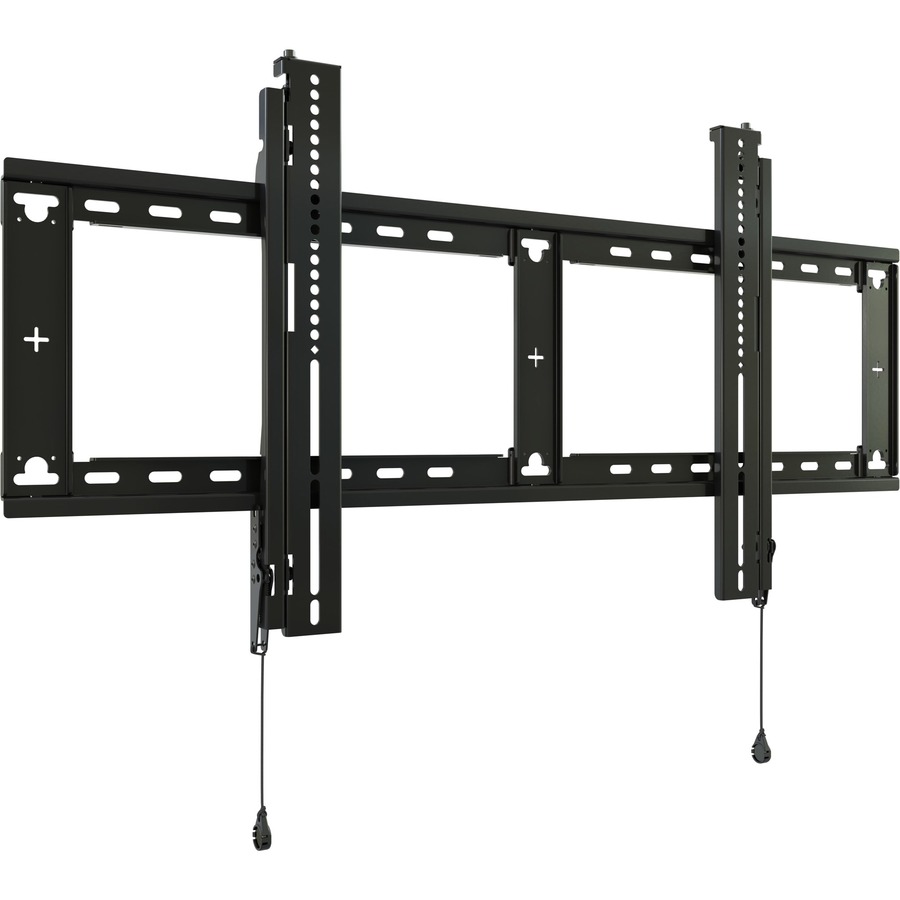

The Fit series RLF3 is a large fixed display wall mount for 43" to 86" typical display sizes and supports mounting patterns up to 960 x 450 mm. This next-generation design features 0.75" (19 mm) post-installation leveling, robust wall plate design supporting up to 200 lbs (90.7 kg), 1" (25 mm) low-profile depth, and UL and TUV safety standard approvals.
- Low profile 1" (25 mm) depth facilitates ADA compliance for typical AV design requirements
- Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included
- Open wall plate allows for flexible positioning around power and data wall boxes
- Supports display mounting patterns up to 960 x 450 mm
- Re-designed rigid wall plate supports up to 200 lbs (90.7 kg) and has additional mounting slots for improved installation experience
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
- Easy access magnetic quick-store release pullcords
- Kickstand for easy access to power and signal connections
- Theft deterrent security options (not included)
- UL and TUV safety standards compliant
Quick Specifications
- Product Line
- Large FIT
- Product Model
- RLF3
- Product Type
- Wall Mount
- Device Supported
- Display
- Maximum Load Capacity
- 200 lb
- Minimum Screen Size Supported
- 43"
- Maximum Screen Size Supported
- 86"
- Height Adjustable
- Yes
