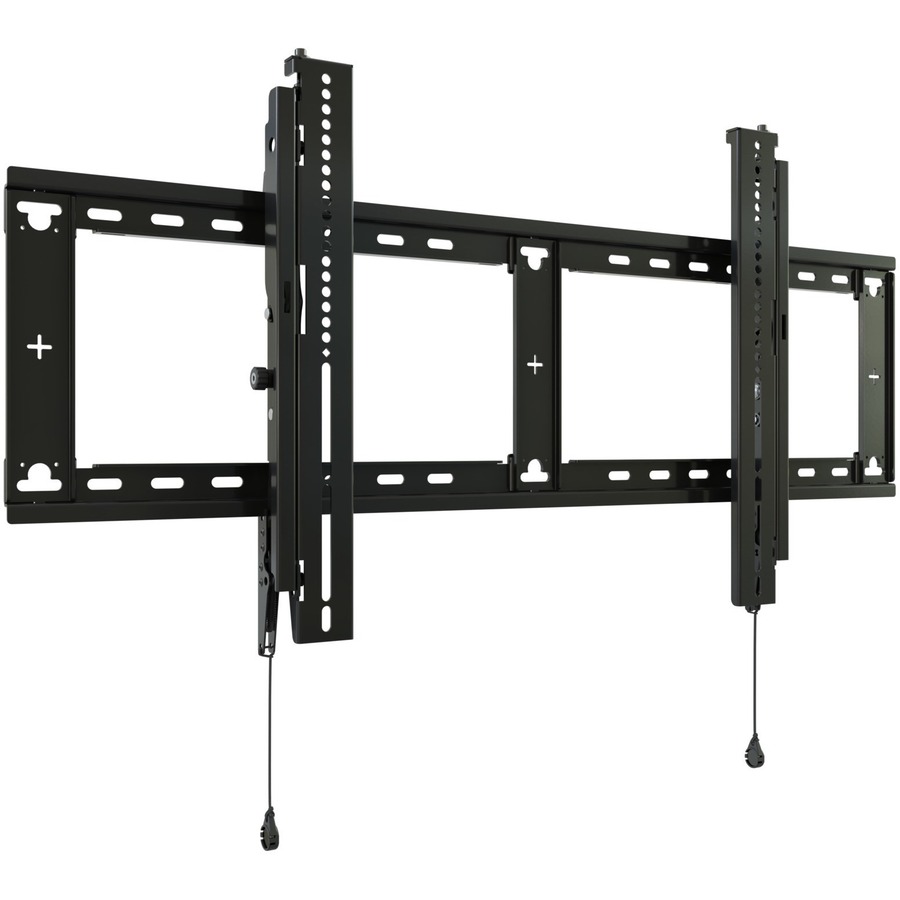

Chief Fit Large Tilt Display Wall Mount - For Displays 43-86" - Black
Manufacturer: Legrand Group
Mfr. Part: RLT3
Height Adjustable - 43" to 86" Screen Support - 200 lb Load Capacity - 915 x 450 VESA Standard
About This Product
Overview
The Fit series RLT3 is a large tilt display wall mount for 43" to 86" typical display sizes and supports mounting patterns up to 915 x 450 mm. This next-generation design features 0.75" (19 mm) post-installation leveling, robust wall plate design supporting up to 200 lbs (90.7 kg), 2" (51 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standard approvals.
- Low-profile 2" (51 mm) depth facilitates ADA compliance for typical AV design requirements
- Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included
- Display can be tilted up to 12° to set the optimal viewing angle
- Open wall plate allows for flexible positioning around power and data wall boxes
- Supports display mounting patterns up to 915 x 450 mm
- Rigid wall plate supports up to 200 lbs (90.7 kg) and has additional mounting slots for improved installation experience
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
- Easy access magnetic quick-store release pullcords
- Kickstand for easy access to power and signal connections
- Theft deterrent security options (not included)
Quick Specifications
- Product Line
- Large FIT
- Product Model
- RLT3
- Product Type
- Wall Mount
- Device Supported
- Display Flat Panel Display Mounting Panel Storage Box Sound Bar Mount
- Maximum Load Capacity
- 200 lb
- Minimum Screen Size Supported
- 43"
- Maximum Screen Size Supported
- 86"
- Height Adjustable
- Yes
