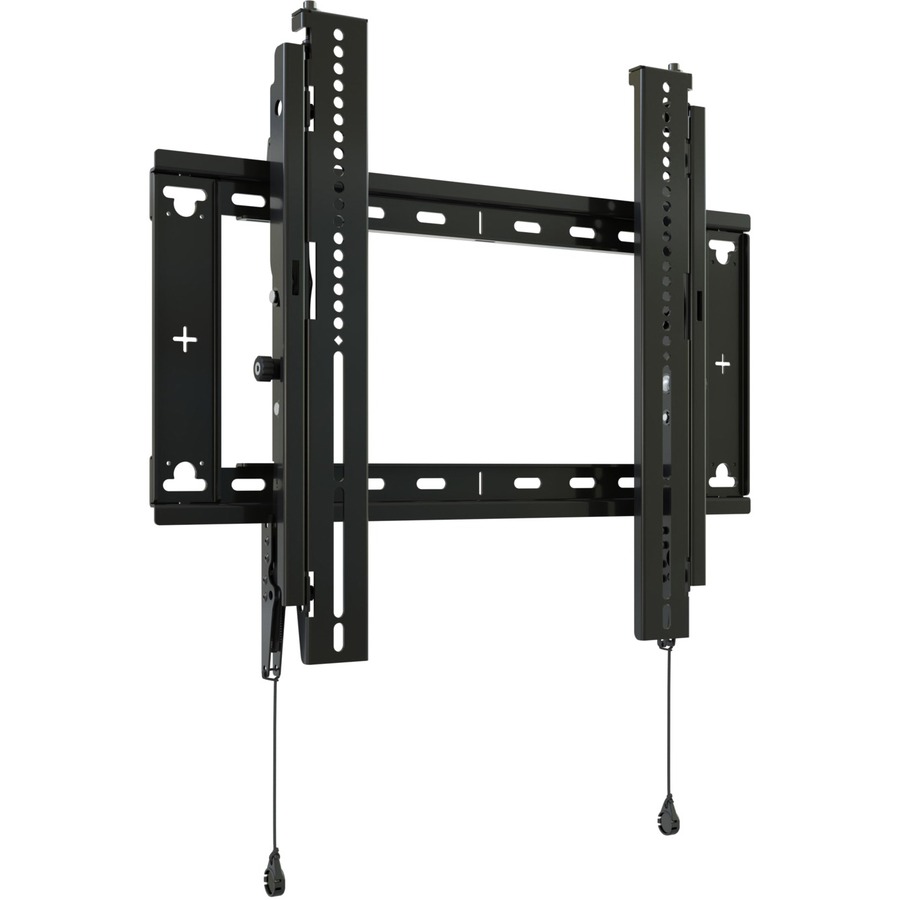

Chief Fit Medium Tilt Display Wall Mount - For 32-65 Inch Displays - Tilt TV Mount - VESA Wall Mount
Manufacturer: Legrand Group
Mfr. Part: RMT3
Height Adjustable - 32" to 65" Screen Support - 125 lb Load Capacity
About This Product
Overview
The Fit series RMT3 is a medium tilt display wall mount for 32" to 65" typical display sizes and supports mounting patterns up to 508 x 450 mm. This next-generation design features 0.75" (19 mm) post-installation leveling, robust wall plate design supporting up to 125 lbs (56.7 kg), 2" (51 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standard approvals.
- Low-profile 2" (51 mm) depth facilitates ADA compliance for typical AV design requirements
- Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included
- Display can be tilted up to 12° to set the optimal viewing angle
- Open wall plate allows for flexible positioning around power and data wall boxes
- Supports display mounting patterns up to 508 x 450 mm
- Re-designed rigid wall plate supports up to 125 lbs (56.7 kg) and has additional mounting slots for improved installation experience
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
- Easy access magnetic quick-store release pullcords
- Kickstand for easy access to power and signal connections
- Theft deterrent security options (not included)
Quick Specifications
- Product Line
- Medium FIT
- Product Model
- RMT3
- Product Type
- Wall Mount
- Device Supported
- Display
- Maximum Load Capacity
- 125 lb
- Minimum Screen Size Supported
- 32"
- Maximum Screen Size Supported
- 65"
- Height Adjustable
- Yes
