Chief Fit X-Large Tilt Display Wall Mount - For Displays 49-98" - Black
Manufacturer: Legrand Group
Mfr. Part: RXT3
Height Adjustable - 49" to 98" Screen Support - 250 lb Load Capacity
About This Product
Overview

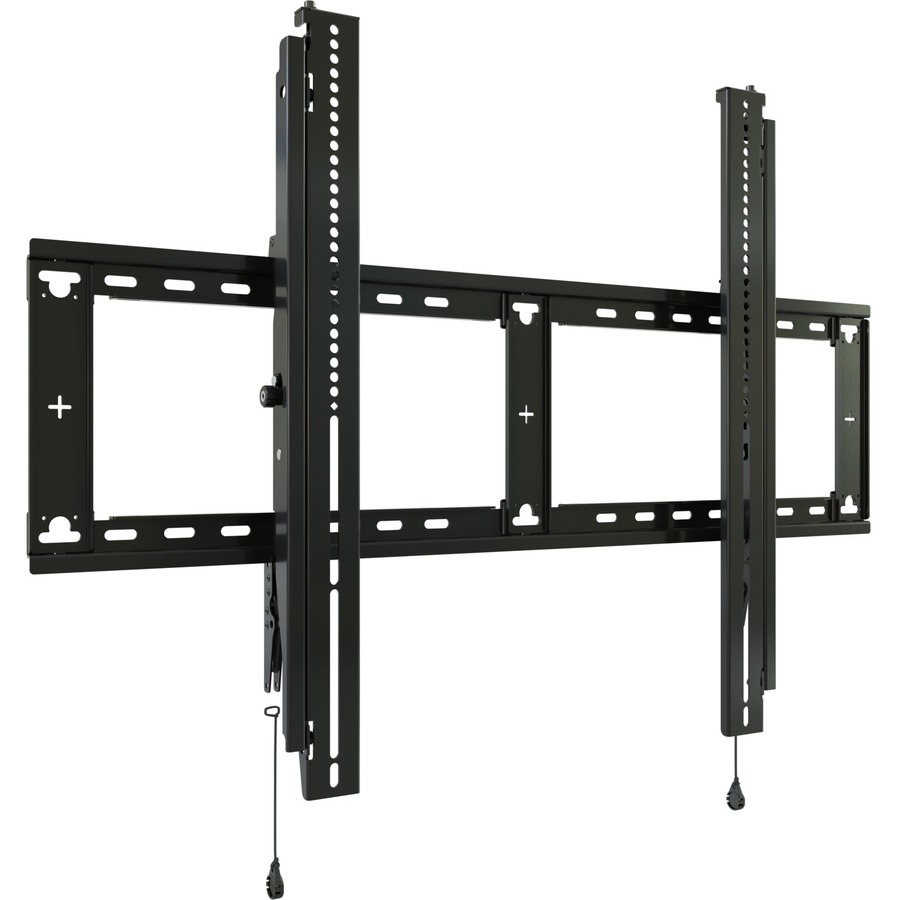

The Fit series RXT3 is an extra-large tilt display wall mount for 49" to 98" typical display sizes and supports mounting patterns up to 915 x 650 mm. This next-generation design features 0.75" (19 mm) post-installation leveling, robust wall plate design supporting up to 250 lbs (113.4 kg), 2.5" (64 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standards approved.
- Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included
- Display can be tilted up to 12° to set the optimal viewing angle
- Open wall plate allows for flexible positioning around power and data wall boxes
- Supports display mounting patterns up to 915 x 650 mm
- Re-designed rigid wall plate supports up to 250 lbs (113.4 kg) and has additional mounting slots for improved installation experience
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
- Easy access magnetic quick-store release pullcords
- Kickstand for easy access to power and signal connections
- Theft deterrent security options (not included)
- UL and TUV safety standards approved
Quick Specifications
- Product Line
- Extra-Large Fit
- Product Type
- Wall Mount
- Device Supported
- Display Wall Plate
- Maximum Load Capacity
- 250 lb
- Minimum Screen Size Supported
- 49"
- Maximum Screen Size Supported
- 98"
- Height Adjustable
- Yes
- Features
- 12° Tilt Landscape Mounting Adjustable Tilt Lateral Adjustment Quick Release Mechanism
