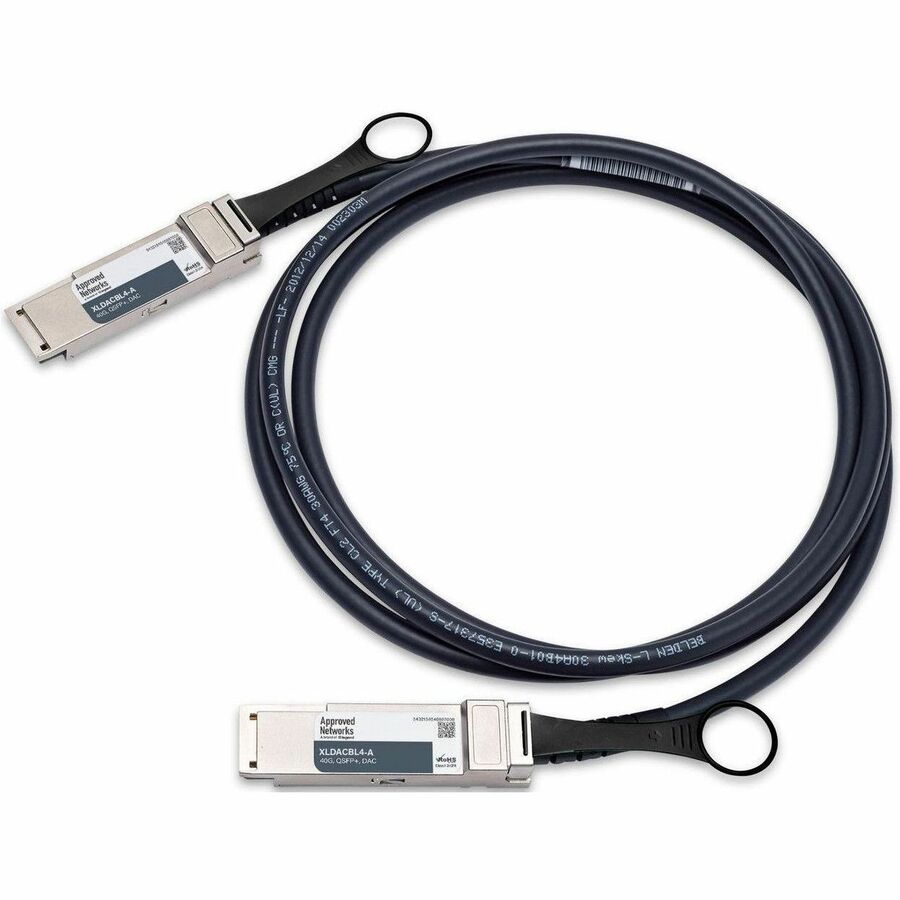

Approved Networks 40GBASE QSFP+ Passive DAC Cable (QSFP+ to QSFP+)
Manufacturer: Legrand Group
Mfr. Part: XLDACBL4-A
13.12 ft Twinaxial Network Cable for Network Device, Router, Storage System, Switch - First End: 1 x QSFP+ Network - Second End: 1 x QSFP+ Network - 40 Gbit/s - 28 AWG
About This Product
Overview
- Compliant QSFP MSA specifications
- Fully compatible with IEEE802.3ba and Infiniband QDR specifications 40 Gb/s total bandwidth
- 4 independent duplex channels operating at 10Gbps, also support for 2.5Gbps, 5Gbps data rates
- 100 ohm differential impedance system
- Low Near-End Crosstalk (NEXT)
- Operating case temperature: -40 to 85°C
- All-metal housing for superior EMI performance
- Precision process control for minimization of pair-to-pair skew
- AC coupling of PECL signals
- EEPROM for cable signature & system communications
Quick Specifications
- Package Type
- OEM
- Product Type
- Network Cable
- Cable Type
- Twinaxial
- Cable Length
- 13.12 ft
- Maximum Distance
- 22.97 ft
- Connector Type on First End
- QSFP+ Network
- Connector on First End Details
- 1 x QSFP+ Network
- Connector Type on Second End
- QSFP+ Network
