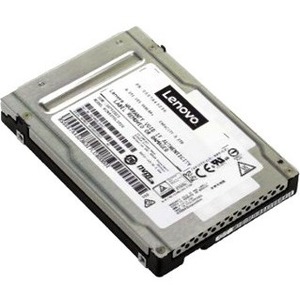

Lenovo CM6-V 800 GB Solid State Drive - 3.5" Internal - PCI Express NVMe (PCI Express NVMe 4.0 x4)
Server Device Supported - 3.0 DWPD - 4380 TB TBW - 6900 MB/s Maximum Read Transfer Rate - Hot Swappable - 1 Year Warranty
About This Product
Overview
The ThinkSystem Kioxia CM6-V Mainstream NVMe PCIe 4.0 x4 solid-state drives (SSDs) in capacities up to 6.4 TB are advanced data center SSDs optimized for mixed read-write performance, endurance, and strong data protection for Lenovo servers. With a PCIe 4.0 x4 interface, they are designed for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
This product guide provides essential presales information to understand the Mainstream NVMe PCIe SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
- Two form factors:
- 2.5-inch (U.3, which is backward compatible with U.2) hot-swap drive tray
- 3.5-inch hot-swap drive tray
- Based on the Kioxia KCM61VUL drives (formerly Toshiba)
- 96-layer BiCS FLASH 3D TLC memory
- 3 drive-write-per-day (DWPD) SSD for mixed read-write workloads
- PCIe 4.0 x4 host connection for each NVMe drive, resulting in up to 6.9 GBps overall throughput.
- Full Power-Loss-Protection and End-to-End Data Protection
- Low power consumption (maximum 20 W)
Quick Specifications
- Product Series
- CM6-V
- Product Type
- Solid State Drive
- Storage Capacity
- 800 GB
- Maximum Read Transfer Rate
- 6900 MB/s
- Maximum Write Transfer Rate
- 1400 MB/s
- Random 4KB Read
- 880000IOPS
- Random 4KB Write
- 100000IOPS
- Endurance (DWPD)
- 3.0
