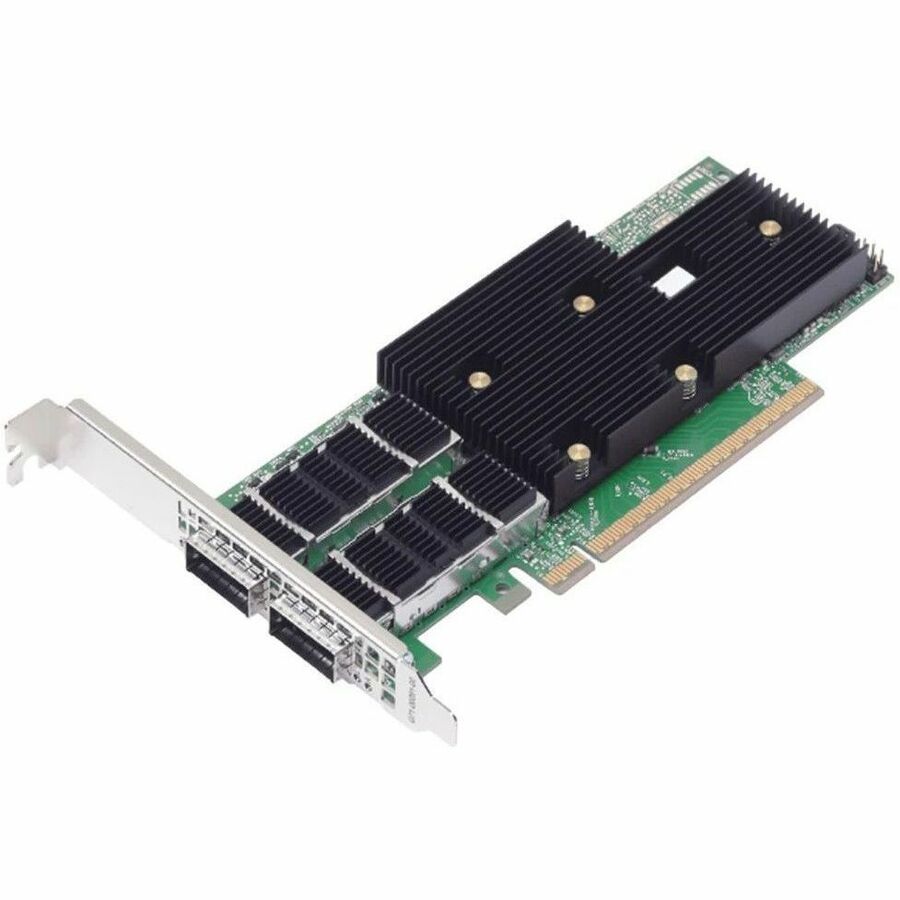

Lenovo ThinkSystem 200/400Gigabit Ethernet Card
PCI Express 5.0 x16 - Broadcom 57608 - Optical Fiber - full-height, low-profile Bracket Height - 100GBase-X, 50GBase-X, 25GBase-X - QSFP112 - Plug-in Card
About This Product
Overview
The ThinkSystem Broadcom 57608 2x200/1x400GbE QSFP112 Ethernet Adapters are high-performance dual-port 200Gb Ethernet adapters with a PCIe 5.0 x16 host interface that are designed to build highly scalable, feature-rich networking solutions in servers for AI/ML, cloud, high-performance computing, and storage applications.
The 57608 Ethernet adapters are available in two form factors, a PCIe low-profile adapter and an OCP 3.0 adapter.
The adapters use the Broadcom BCM57608 400GbE MAC controller. Incorporating industry-leading PHY technology, the adapter provides highly efficient network connectivity using 8 lanes of built-in SerDes, each supporting 100/50G PAM-4 and 25G NRZ. The adapters support fourth-generation, standards-based RDMA over Converged Ethernet (RoCE) with hardware-based congestion control.
The 57608 Ethernet adapters offer two 200Gb Ethernet ports but can also be configured as a 1-port 400Gb adapter with port 1 active and port 2 disabled.
- 200/400Gigabit Ethernet Card offers maximum efficiency and usability
- The PCI Express 5.0 x16 interface provides smooth data transfer and outstanding performance
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between servers and network components
- With the 100GBase-X technology get up to 100Gbps data transfer rate over the supported network cable
Quick Specifications
- Product Line
- ThinkSystem
- Packaged Quantity
- 1
- Product Type
- 200/400Gigabit Ethernet Card
- Chipset Manufacturer
- Broadcom
- Chipset Model
- 57608
- AI-powered
- Yes
- Host Interface
- PCI Express 5.0 x16
- Total Number of Expansion Slots
- 3
